30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 039000001 - 039999999) (1993) CARBURETOR-ENGINE MODEL NO. MV16S-TYPE 56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

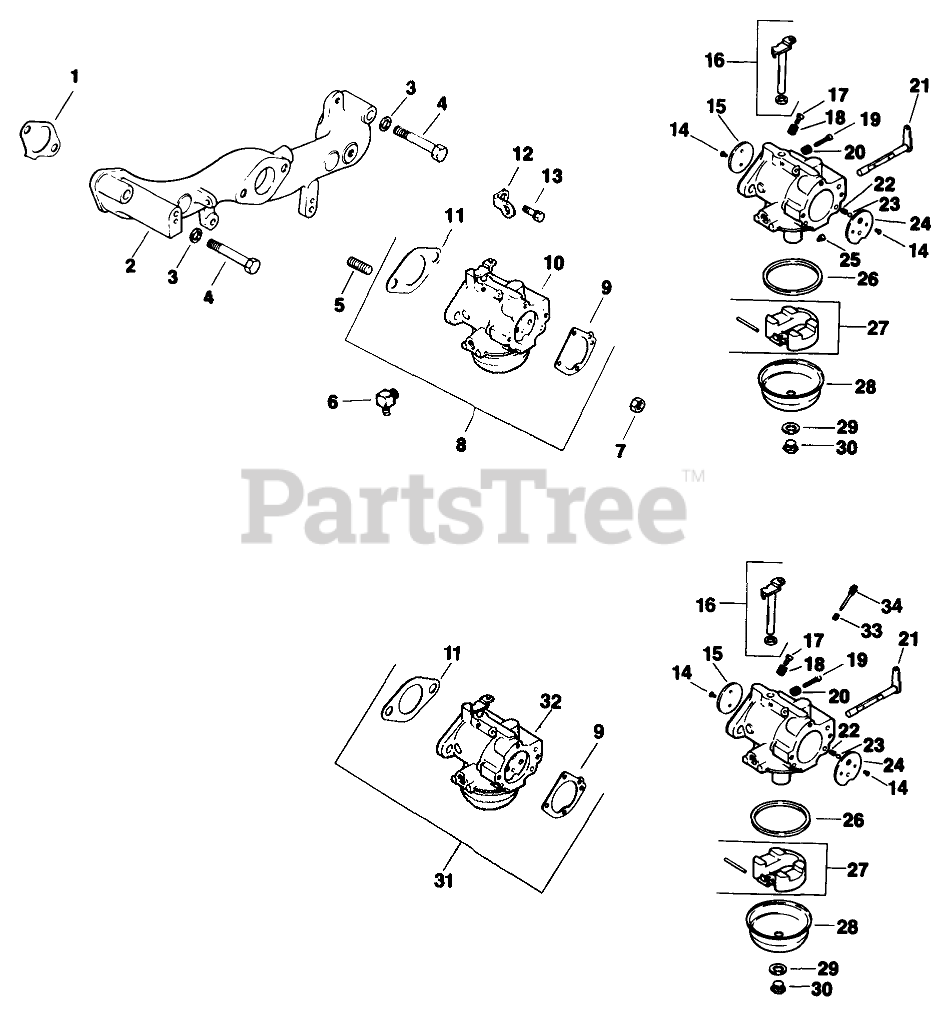

CARBURETOR-ENGINE MODEL NO. MV16S-TYPE 56519 Parts Diagram

  • Title

1

Toro 52_041_09

Gasket-Intake

$

$

Currently unavailable

2

Toro 52_164_14

Manifold-Intake

$

$

Currently unavailable

3

Kohler X-21-1

Washer
(Superseded to X-21-1-S)

$3.99

$

In Stock, only 3 left!

0

4

Kohler X-6-29

Screw
(Superseded to X-6-29-S)

$3.49

$

In Stock, only 4 left!

0

5

Kohler 235778

Clip
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

6

255_155_02

Connector-Hose

$

$

Not available

7

Kohler X-77-2

Nut
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

8

Toro 52_853_09

CARburetor Kit w/Linkage

$

$

Currently unavailable

9

Toro 25_041_06

Gasket-Elbow

$

$

Currently unavailable

10

Toro 52_053_34

Carburetor Assembly Ref.

$

$

Currently unavailable

11

Kohler 271030

Gasket
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

12

Kohler 232867

Strap Lifting
(Superseded to 28 445 01-S)

$

$

Not available

13

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

14

Toro 25_086_27

Screw-Throttle Plate

$

$

Currently unavailable

15

25_146_02

Plate-Throttle

$

$

Not available

16

Toro 52_144_16

Shaft Assembly

$

$

Currently unavailable

17

25_368_01

Valve-Needle

$

$

Not available

18

25_089_02

Spring

$

$

Not available

19

25_086_26

Screw

$

$

Not available

20

25_089_04

Spring

$

$

Not available

21

Toro 52_090_13

Lever-Choke

$

$

Currently unavailable

22

25_089_03

Spring-Choke

$

$

Not available

23

25_194_01

Ball-Choke

$

$

Not available

24

Toro 25_146_03

Plate-Choke

$

$

Currently unavailable

25

Toro 52_337_06

Jet-Main

$

$

Currently unavailable

26

25_041_04

Bowl-Gasket

$

$

Not available

27

25_757_09

Kit-Float

$

$

Not available

28

25_104_01

Bowl

$

$

Not available

29

25_041_03

Gasket-Bowl

$

$

Not available

30

25_100_05

Screw-Bowl

$

$

Not available

31

Toro 52_853_25

Kit-Carburetor w/Gasket

$

$

Currently unavailable

32

Toro 52_053_54

CARburetor Assembly For Information Only

$

$

Currently unavailable

33

25_089_02

Spring

$

$

Not available

34

Toro 25_368_03

Needle-Main Fuel

$

$

Currently unavailable

25_757_11

Carburetor Repair Kit

Note: Not Illustrated.

$

$

Not available

Toro 52_755_98

Kit-High Altitude

Note: Not Illustrated.

$

$

Currently unavailable
