30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 020000001 - 029999999) (1992) IGNITION-ENGINE KOHLER MODEL NO. MV16S-TYPE 56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

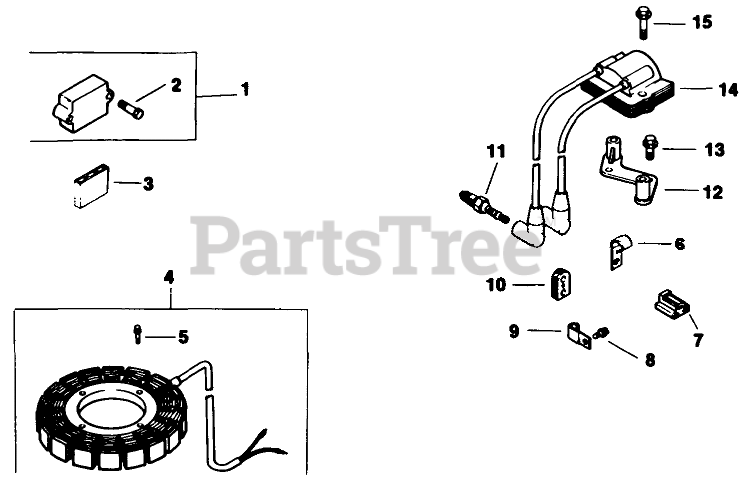

IGNITION-ENGINE KOHLER MODEL NO. MV16S-TYPE 56519 Parts Diagram

  • Title

1

Toro 25_755_03

Kit-Rectifier/Regulator (Incl. Ref.#2)

$

$

Currently unavailable

2

Kohler X-132-5

Screw
(Superseded to X-132-5-S)

$3.49

$

In Stock, only 1 left!

0

3

Kohler 236602

Connector
(Superseded to 236602-S)

$24.99

$

In Stock, only 1 left!

0

4

Kohler 237878

Kit-Stator (Incl. Ref. #5)
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 15

0

5

Kohler X-67-51

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 235173

Clip
(Superseded to 235173-S)

$11.99

$

Usually ships in 2-5 days

0

7

Kohler 236473

Connector
(Superseded to 236473-S)

$7.49

$

Usually ships in 2-5 days

0

8

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

9

Toro 48_154_02

Clip

$

$

Currently unavailable

10

Toro 52_313_02

Grommet

$

$

Currently unavailable

11

Toro 52_132_02

Plug-Spark

$

$

Currently unavailable

12

Toro 52_126_08

Bracket-Module

$

$

Currently unavailable

13

Toro 25_086_15

Screw-Hex Washer Hd.

$

$

Currently unavailable

14

Toro 52_584_02

Module-Ignition

$

$

Currently unavailable

15

Toro 25_086_16

Screw-Hex Washer Hd.

$

$

Currently unavailable

Toro 47_518_33

Lead-Roget

Note: Not Illustrated.

$

$

Currently unavailable

Toro 52_518_19

Lead-White

Note: Not Illustrated.

$

$

Currently unavailable
