30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 020000001 - 029999999) (1992) ELECTRIC START-ENGINE KOHLER MODEL NO. MV16S-TYPE 56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

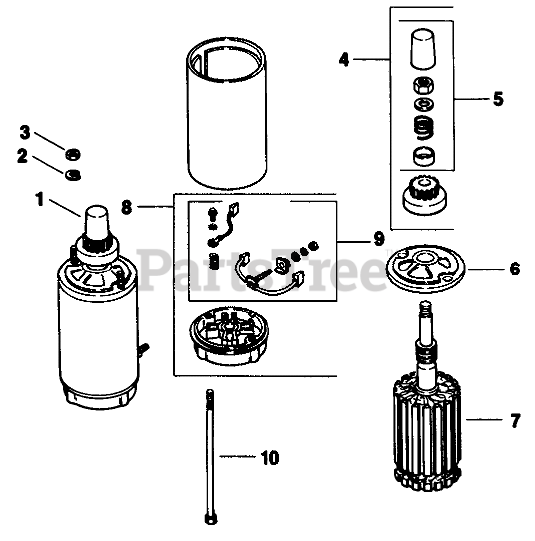

ELECTRIC START-ENGINE KOHLER MODEL NO. MV16S-TYPE 56519 Parts Diagram

  • Title
1

Toro 52_098_09

StARter Assembly (Incl. Ref. #4-10)

$

$

Currently unavailable

2

Toro X-20-1

Washer

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Toro 52_755_05

Kit-Drive (Incl. Ref. #5)

$

$

Currently unavailable

5

Toro 52_755_08

Kit-Drive Parts

$

$

Currently unavailable

6

Toro 52_227_01

Cap-Drive End

$

$

Currently unavailable

7

Toro 52_170_02

ARmature

$

$

Currently unavailable

8

Toro 52_227_09

Cap-Commutator End (Incl. Ref. #9)

$

$

Currently unavailable

9

Toro 48_755_15

Kit-Brush

$

$

Currently unavailable

10

$

$

Currently unavailable

52_357_01

Lubricant

Note: Not Illustrated.

$

$

Not available
