30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

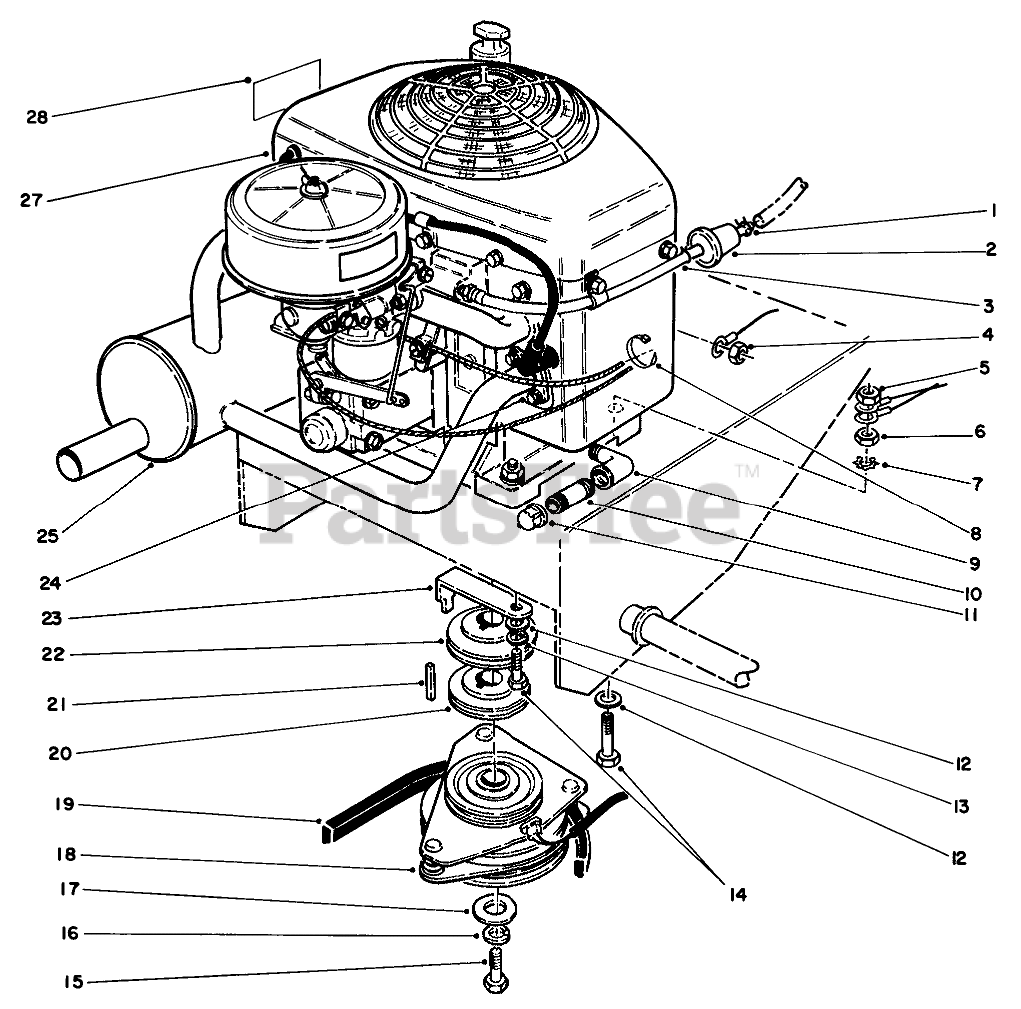

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

2

Fuel-Filter

$

$

Not available

3

Hose-Gas

$

$

Not available

4

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

5

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

7

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

8

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

9

Toro 2811-10

ELBOW-STREET, 90 DEG

$

$

Not available

10

Toro 289-48

NIPPLE

$

$

Not available

11

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

15

Toro 3212-24

SCREW-HH

$24.99

$

Usually ships in 3-6 days

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

17

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

18

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

19

Toro 54-2750

V-BELT, DRIVE

$59.99

$

In Stock, only 2 left!

0

Toro 55-7660

V-BELT

$64.99

$

In Stock, only 1 left!

0

20

Toro 74-0050

SHEAVE-LOWER HALF

$21.99

$

Usually ships in 3-6 days

0

21

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

22

Toro 74-0060

SHEAVE-UPPER HALF

$21.99

$

Usually ships in 3-6 days

0

23

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 1 left!

0

24

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

25

Toro 68-2050

MUFFLER

$

$

Not available

26

Toro 68-3240

EXHAUST GASKET F/W ENG.

$

$

Not available

27

Engine (Incl. Ref. #2 & 3)

$

$

Not available

28

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available
