30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) CRANKCASE-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

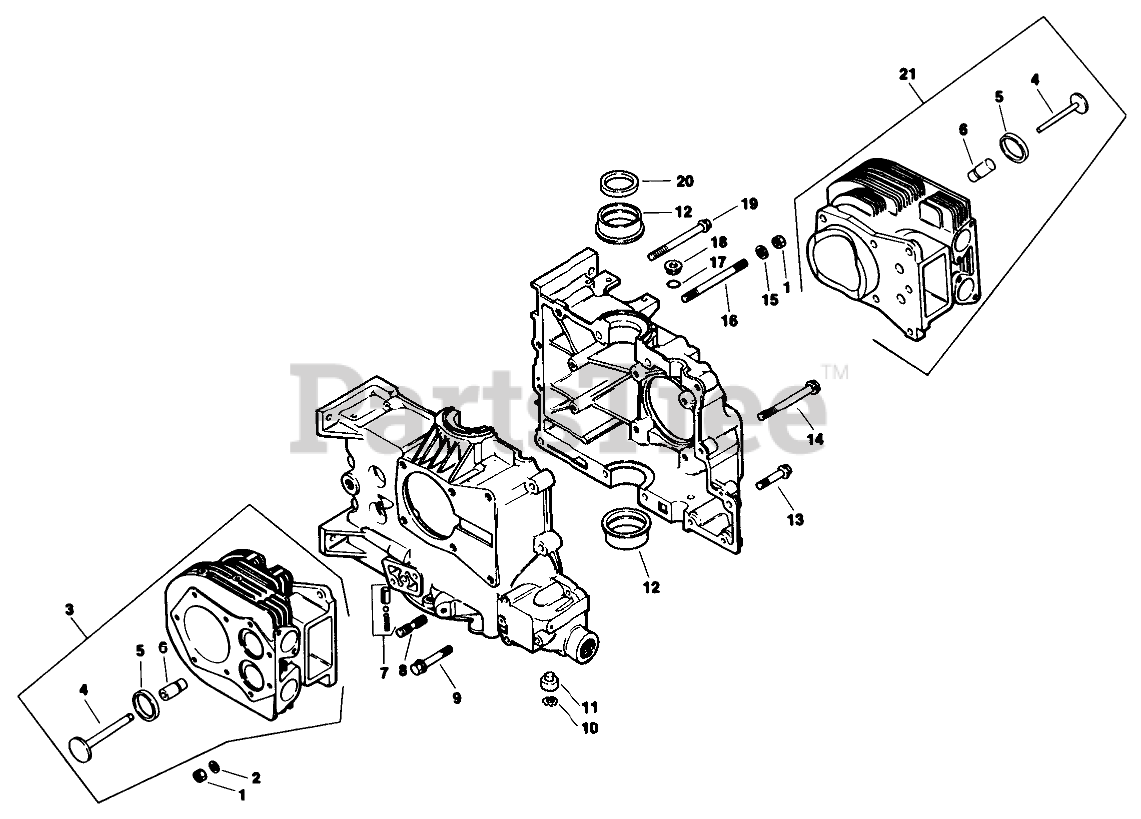

CRANKCASE-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title

1

Kohler X-82-2

Nut
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

2

Toro 52_468_12

Washer-Flat

$

$

Currently unavailable

3

Toro 82_755_16

Kit-#1 Cylinder Barrel (Incl. Ref. #4-6)

$

$

Currently unavailable

4

Toro 52_016_05

Valve-Exhaust

$

$

Currently unavailable

5

Toro 52_031_01

Inset-Valve Seat

$

$

Currently unavailable

6

Toro 52_316_06

Guide-Valve

$

$

Currently unavailable

7

Toro 52_755_50

Kit-Oil Relief

$

$

Currently unavailable

8

Toro 52_072_12

Stud

$

$

Currently unavailable

9

Toro 25_086_12

Screw-Hex Flange

$

$

Currently unavailable

10

Kohler X-269-43

Ring-Retaining
(Superseded to X-269-43-S)

$3.99

$

Usually ships in 2-5 days

0

11

Toro 52_078_05

Shaft-Governor

$

$

Currently unavailable

12

Toro 52_030_10

Bearing-Sleeve

$

$

Currently unavailable

Toro 52_030_11

Bearing-Sleeve .010"

$

$

Currently unavailable

Toro 52_030_12

Bearing-Sleeve .020"

$

$

Currently unavailable

13

Toro 25_086_10

Screw-Hex Flange

$

$

Currently unavailable

14

Toro 25_086_13

Screw-Hex Flange

$

$

Currently unavailable

15

Toro 41_468_01

Washer-Flat

$

$

Currently unavailable

16

Kohler X-352-33

Stud
(Superseded to 25 086 11-S)

$6.99

$

In Stock, only 1 left!

0

17

Toro 52_141_02

0-Ring

$

$

Currently unavailable

18

Toro 52_139_08

Plug

$

$

Currently unavailable

19

Toro 25_086_11

Screw-Hex Flange

$

$

Currently unavailable

20

Toro 52_032_10

Seal-ReAR Oil

$

$

Currently unavailable

21

Toro 82_755_17

Kit-#2 Cylinder Barrel (Incl. Ref. #4-6)

$

$

Currently unavailable
