30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) BREATHER & VENT-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

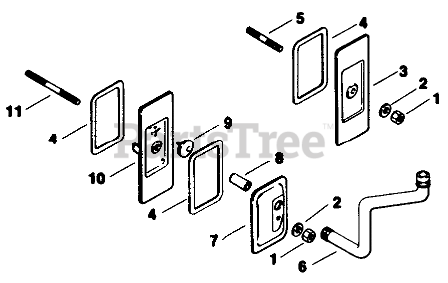

BREATHER & VENT-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Kohler X-25-12

Washer
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

3

Toro 52_096_18

Cover Cylinder Valve

$

$

Currently unavailable

4

Toro 52_055_01

Gasket-Cover

$

$

Currently unavailable

5

Toro X-325-39

Stud-Valve Cover

$

$

Currently unavailable

6

Toro 52_326_12

Hose-Breather

$

$

Currently unavailable

7

Toro 52_096_08

Cover-#1 Upper Cyl. Valve

$

$

Currently unavailable

8

Toro 52_032_04

Seal-Breather

$

$

Currently unavailable

9

Toro 52_462_01

Valve-Breather

$

$

Currently unavailable

10

Toro 52_096_22

Cover-#1 Lower Cyl. Valve

$

$

Currently unavailable

11

Kohler 275220

Stud
(Superseded to 275220-S)

$

$

Not available
