30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) AIR INTAKE-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

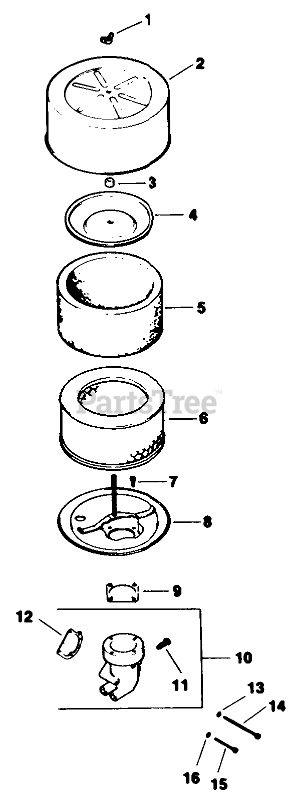

AIR INTAKE-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title

1

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

$

$

Not available

2

Toro 45_082_01

Cover-Air Cleaner

$

$

Currently unavailable

3

Kohler 231032

Seal
(Superseded to 231032-S)

$8.49

$

Usually ships in 2-5 days

0

4

52_082_04

Cover-Inner

$

$

Not available

5

Toro 45_083_01

Element

$

$

Currently unavailable

6

Toro 45_083_02

Element

$

$

Currently unavailable

7

Kohler X-67-98

Screw-H.C.
(Superseded to X-67-98-S)

$3.49

$

Usually ships in 2-5 days

0

8

Toro 52_094_06

Base-Air Cleaner

$

$

Currently unavailable

9

Kohler 277093

Gasket-Air Cleaner
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 6

0

10

Toro 52_754_02

Elbow-Kit (Incl. Ref. #11 & 12)

$

$

Currently unavailable

11

52_086_11

Screw-H.C

$

$

Not available

12

Toro 25_041_06

Gasket-Elbow

$

$

Currently unavailable

13

Kohler X-22-9

Washer
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

14

Kohler X-50-57

Screw-R.H.M.
(Superseded to X-50-57-S)

$

$

Not available

15

Kohler X-50-37

Screw-R.H.M.
(Superseded to X-50-37-S)

$3.99

$

In Stock, only 4 left!

0

16

Kohler X-25-79

Washer
(Superseded to X-25-79-S)

$3.99

$

In Stock, only 2 left!

0

Toro 25_113_07

Decal

$

$

Currently unavailable
