30178 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 250000001 - 250999999) (2005) IGNITION / ELECTRICAL ASSEMBLY KOHLER CV15T 41624 Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 15hp

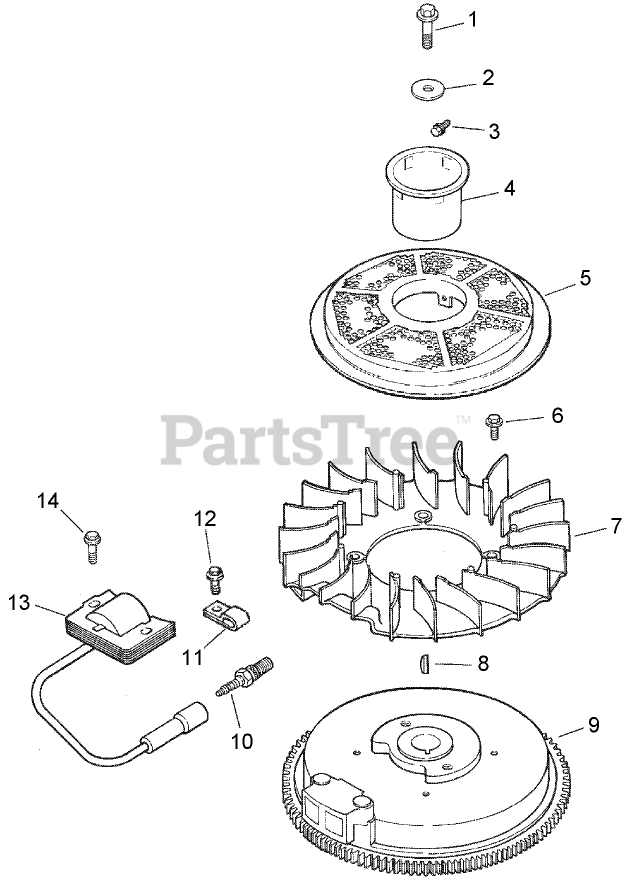

IGNITION / ELECTRICAL ASSEMBLY KOHLER CV15T 41624 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

3

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

4

Kohler 12 109 07-S

Cup-Drive, Starter

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 12 162 09-S

Screen-Grass

Note: Obtain parts from www.kohlerplus.com

$40.99

$

Usually ships in 2-5 days

0

6

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

7

Kohler 12 157 03-S

Fan

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 6

0

9

Kohler 12 025 56-S

Flywheel
(Superseded to 12 025 72-S)

Note: Obtain parts from www.kohlerplus.com

$393.99

$

Usually ships in 2-5 days

0

10

Kohler 12 132 02-S

SPARK PLUG

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 20+

0

11

Kohler X-728-1-S

Clip

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

13

Kohler 12 584 05-S

Module-Ignition

Note: Obtain parts from www.kohlerplus.com

$125.99

$

In Stock, only 1 left!

0

14

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

Kohler 25 086 110-S

Screw-Tapping, Slotted

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

Kohler 25 086 110-S

Screw-Tapping, Slotted

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0

Kohler 12 518 07-S

Lead-White (18in, 18 gauge, Fully insulated female disconnect terminals)

Note: Not illustrated

$

$

Not available

Kohler 12 518 07-S

Lead-White (18in, 18 gauge, Fully insulated female disconnect terminals)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 12 454 03-S

Tie-Wire

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

Kohler 12 454 03-S

Tie-Wire

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0
