30177 - Toro ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 099001352 - 099999999) (1999) FUEL TANK & IDLER BRACKEY ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 15hp

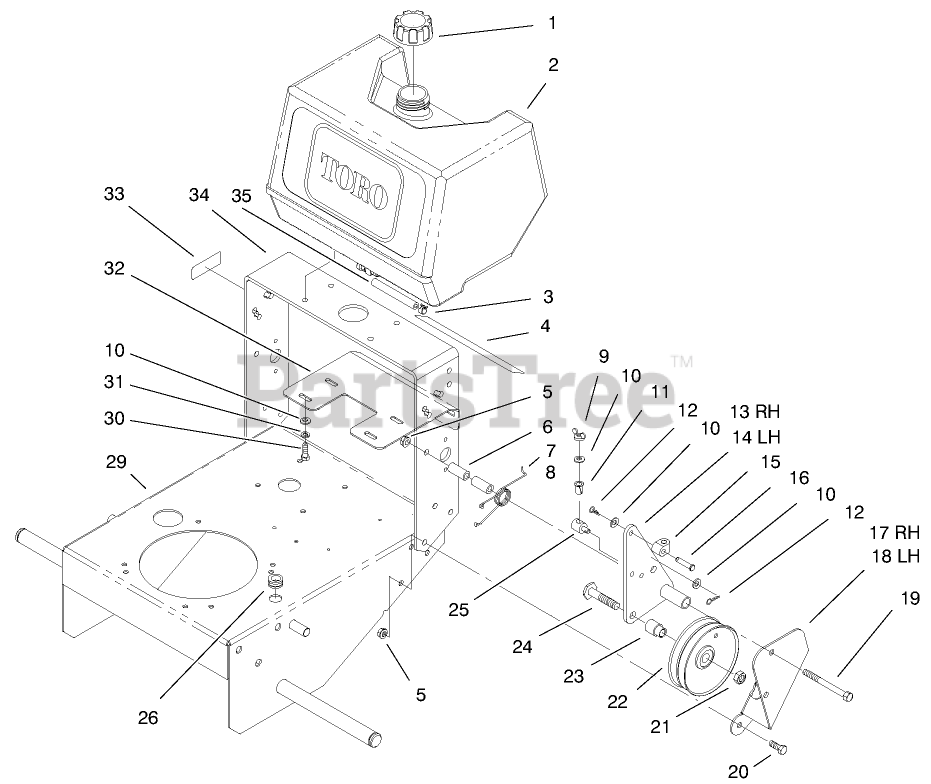

FUEL TANK & IDLER BRACKEY ASSEMBLY Parts Diagram

  • Title
1

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

2

Toro 95-2802

TANK-FUEL

$

$

Not available

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 82-7750

DECAL-GROUND SPEED

$

$

Not available

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 74-0040

SPACER-PIVOT, IDLER

$6.49

$

Usually ships in 3-6 days

0

7

Toro 51-4370

SPRING-TORSION, RH

$17.99

$

In Stock, only 1 left!

0

8

Toro 51-4380

SPRING-TORSION, LH

$17.99

$

In Stock, only 1 left!

0

9

Toro 32103-25

NUT-WING

$5.49

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 52-2890

BUSHING-NYLON

$2.99

$

Usually ships in 3-6 days

0

12

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

13

Toro 74-0230-01

BRACKET-IDLER, RH

$75.99

$

Usually ships in 3-6 days

0

14

Toro 74-0220-01

BRACKET-IDLER, LH

$

$

Not available

15

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

16

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

17

Toro 67-6370-01

BRACKET-SUPPORT, RH

$108.99

$

Usually ships in 3-6 days

0

18

Toro 67-6380-01

BRACKET-SUPPORT, LH

$108.99

$

Usually ships in 3-6 days

0

19

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 95-2800

PULLEY-IDLER

$44.99

$

Usually ships in 3-6 days

0

23

Toro 95-2801

SPACER-PULLEY

$9.49

$

Usually ships in 3-6 days

0

24

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

25

Toro 68-9690

FITTING-ROD

$54.99

$

Usually ships in 3-6 days

0

26

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

29

$

$

Not available

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 66-7400-01

PLATE-CONTROL

$

$

Not available

33

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

34

Toro 74-0360-01

FRAME-REAR

$

$

Not available

35

Toro 47-2964

HOSE-FUEL
(Superseded to 110-4895)

$16.99

$

Usually ships in 3-6 days

0
