30177 - Toro ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 099001352 - 099999999) (1999) BLOWER HOUSING AND BAFFLES Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 15hp

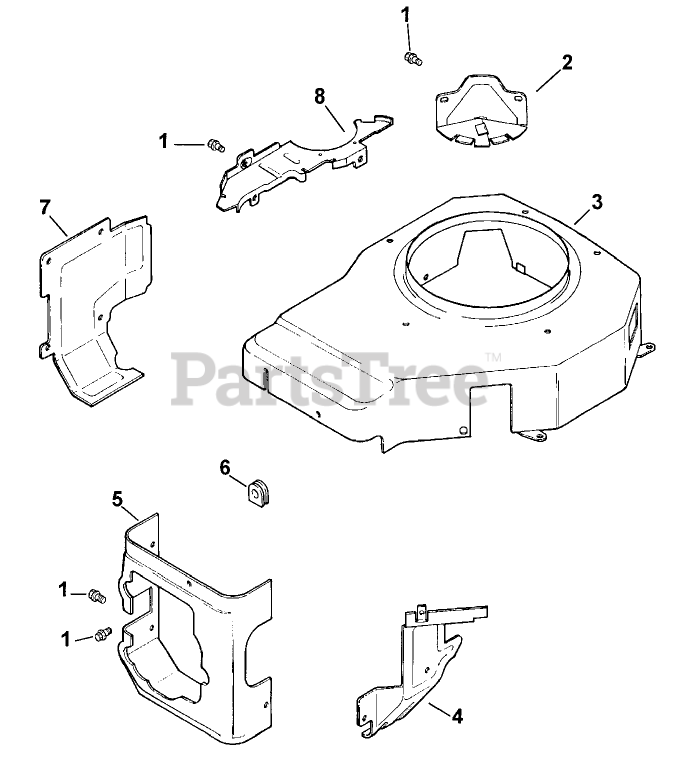

BLOWER HOUSING AND BAFFLES Parts Diagram

  • Title

1

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$4.49

$

In Stock, only 2 left!

0

2

1209629

Cover-Starter

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$

$

Not available

3

1202737

Housing-Blower

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$

$

Not available

4

1206305

Baffle-Carburetor

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$

$

Not available

5

1206308

Baffle-Cyl. Head

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$

$

Not available

6

1231303

Grommet-Blower

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$

$

Not available

7

1206301

Baffle-Cylinder

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$

$

Not available

8

1214607

Plate-Blower Housing

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$

$

Not available

1213367

Decal-Hoursepower

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560-Obtain Parts From Kohler

$

$

Not available

1213367

Decal-Hoursepower

Note: Not illustrated

$

$

Not available
