30177 - Toro ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 099000001 - 099001351) (1999) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 15hp

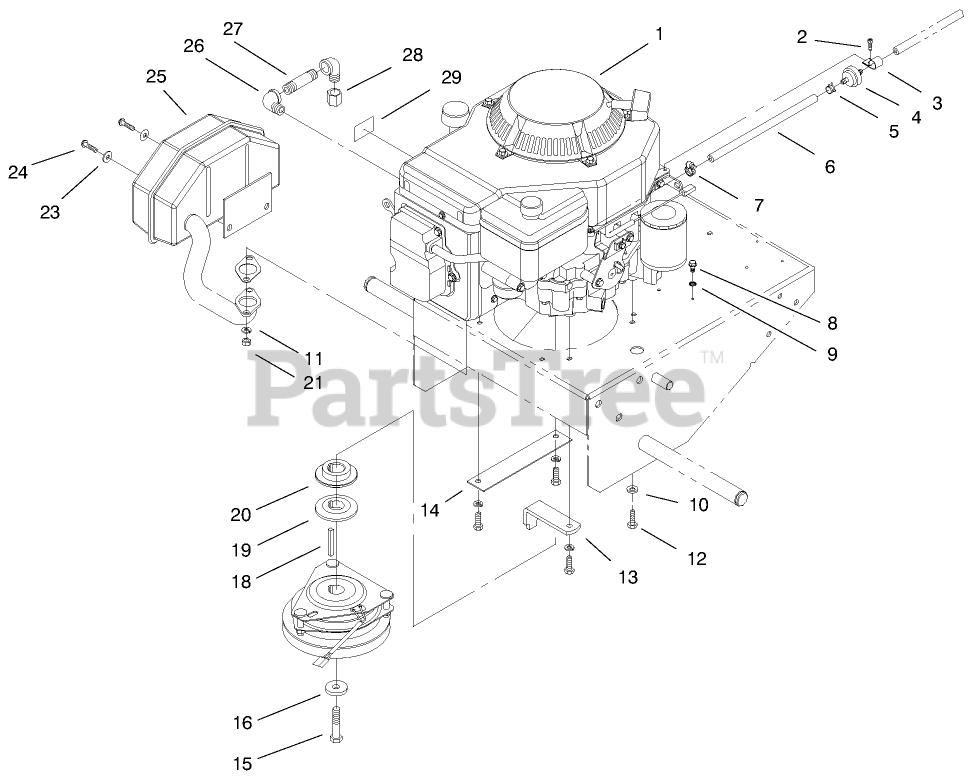

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-15 Hp Kohler

$

$

Not available

2

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

5

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

6

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

7

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

8

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

9

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 57-6380

SCREW-HH
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

13

Toro 51-4540-03

RETAINER-CLUTCH

$21.99

$

In Stock, only 1 left!

0

14

Toro 74-0930-01

GUARD-PULLEY

$

$

Not available

15

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

16

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

18

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

19

Toro 74-0050

SHEAVE-LOWER HALF

$21.99

$

Usually ships in 3-6 days

0

20

Toro 74-0060

SHEAVE-UPPER HALF

$21.99

$

Usually ships in 3-6 days

0

23

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

24

Toro 93-7033

SCREW-MUFFLER

$

$

Not available

25

Toro 95-5517

MUFFLER

$

$

Not available

26

Toro 74-0950

ELBOW-STREET, 90 DEG

$

$

Not available

27

Toro 289-51

NIPPLE

$

$

Not available

28

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

29

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available
