30177 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 069005001 - 699999999) (1996) STARTER SYSTEM Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

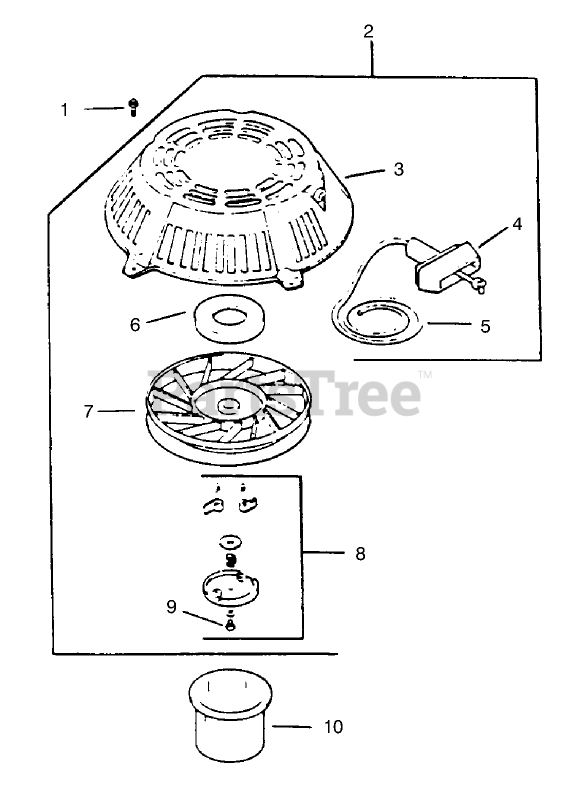

STARTER SYSTEM Parts Diagram

  • Title

1

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

2

1216501

Starter Incl 3-9

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1208101

Housing-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 234452

Handle
(Superseded to 25 166 01)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, Qty 10

0

5

1216001

Rope-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1208906

Spring & Keeper

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1209301

Pulley

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1275706

Kit-Dog Replacement

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

4108609

Screw-Posidrive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1510901

Cup-Driver

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1211307

Decal-Starting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
