30177 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 069005001 - 699999999) (1996) EXHAUST Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

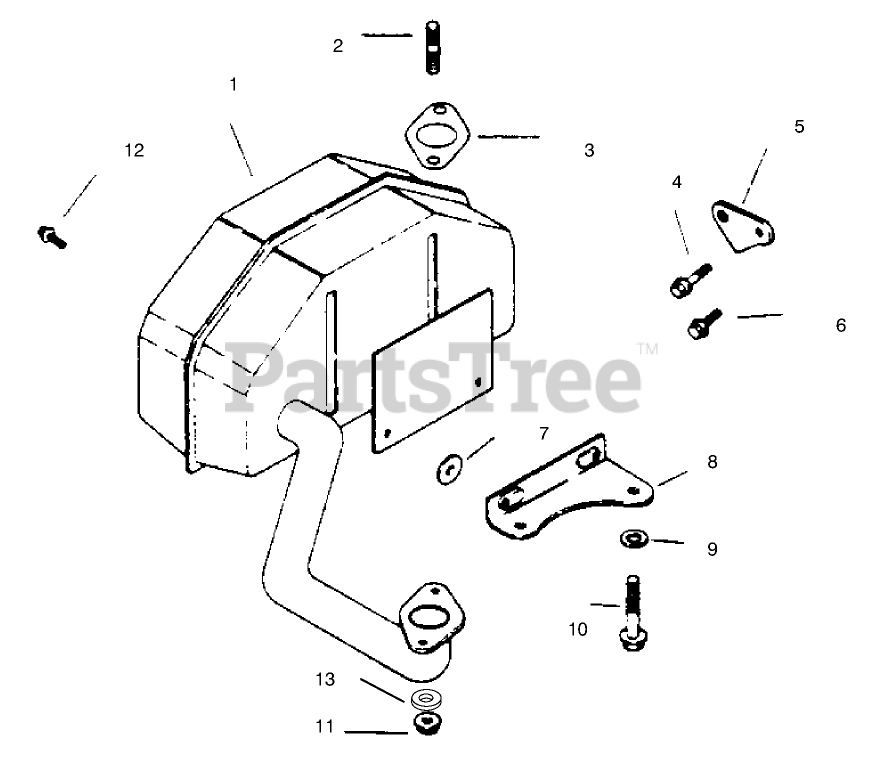

EXHAUST Parts Diagram

  • Title

1

1206803

Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler M-0829033

Stud
(Superseded to M-829033)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 3 left!

0

3

1204103

Gasket-Exhaust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

5

1244501

Strap-Lifting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

7

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 1 left!

0

8

1212639

Bracket-Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

1246801

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1208613

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

12

Kohler M-0650012

Screw
(Superseded to M-650012-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

13

Toro 3253-4

WASHER-LOCK

Note: Call PartsTree Customer Service for more information on Kohler Parts

$0.99

$

In Stock, Qty 20+

0

1275501

Gasket Set

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1275530

Kit-Bracket

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
