30176 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 059000001 - 059999999) (1995) ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

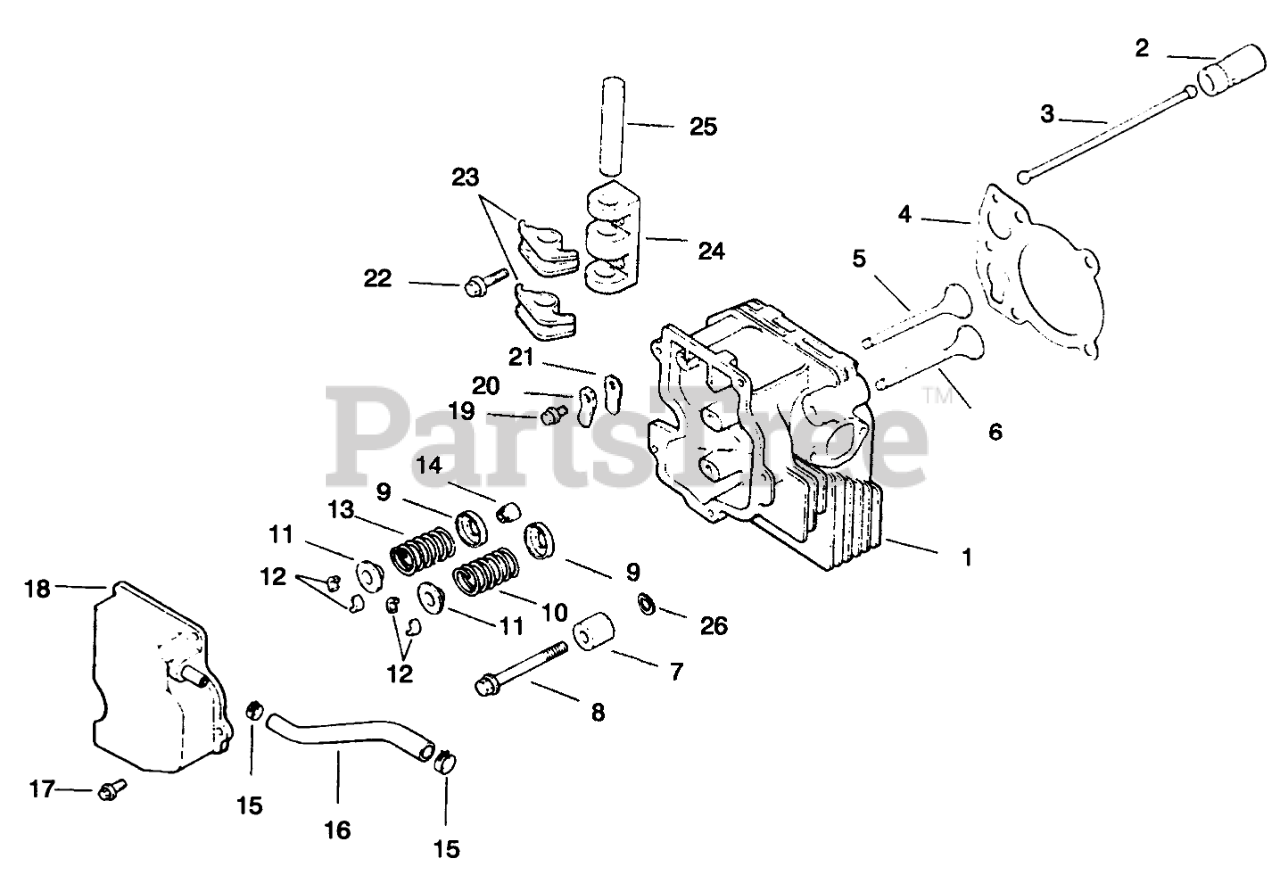

ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

  • Title

Toro 25-755-13

Kit-Oil Fill Cap

Note: Not illustrated

$

$

Currently unavailable

1

Toro 12-318-01

Cylinder Head

$

$

Currently unavailable

2

Toro 12-351-01

Lifter-Valve

$

$

Currently unavailable

3

Toro 12-411-01

Rod-Push

$

$

Currently unavailable

4

Toro 12-041-08

Gasket-Cylinder Head

$

$

Currently unavailable

5

Toro 12-017-01

Valve-Intake (Std.)

$

$

Currently unavailable

Toro 12-017-02

Valve-Intake (.25)

$

$

Currently unavailable

6

Toro 12-016-01

Valve-Exhaust (Std)

$

$

Currently unavailable

Toro 12-016-02

Valve-Exhaust (.25)

$

$

Currently unavailable

7

Toro 12-112-13

Spacer-Head Bolt

$

$

Currently unavailable

8

Toro 12-086-15

Screw-Cylinder Head

$

$

Currently unavailable

9

Toro 52-018-01

Retainer-Spring

$

$

Currently unavailable

10

Toro 12-089-01

Spring-Valve

$

$

Currently unavailable

11

Toro 12-173-01

Cap-Valve spring

$

$

Currently unavailable

12

Toro 12-755-03

Kit-Retainer

$

$

Currently unavailable

13

Toro 12-089-15

Spring-Valve, Exhaust

$

$

Currently unavailable

14

Toro 12-032-02

Seal-Valve Stem

$

$

Currently unavailable

15

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

16

Toro 12-326-03

Hose-Breather

$

$

Currently unavailable

17

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

18

Toro 12-096-07

Cover-Valve W/Nipple

$

$

Currently unavailable

19

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

20

Toro 12-018-01

Retainer-Breather Reed

$

$

Currently unavailable

21

Toro 12-402-01

Reed-Breather

$

$

Currently unavailable

22

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

23

Toro 12-186-01

Arm-Rocker

$

$

Currently unavailable

24

Toro 12-126-05

Bridge-Rocker Arm

$

$

Currently unavailable

25

Toro 12-144-03

Shaft-Rocker Arm

$

$

Currently unavailable

26

Toro 12-468-05

Washer-Flat

$

$

Currently unavailable

Toro 12-755-02

Kit-Cylinder Head

Note: Not illustrated

$

$

Currently unavailable
