30176 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 059000001 - 059999999) (1995) ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

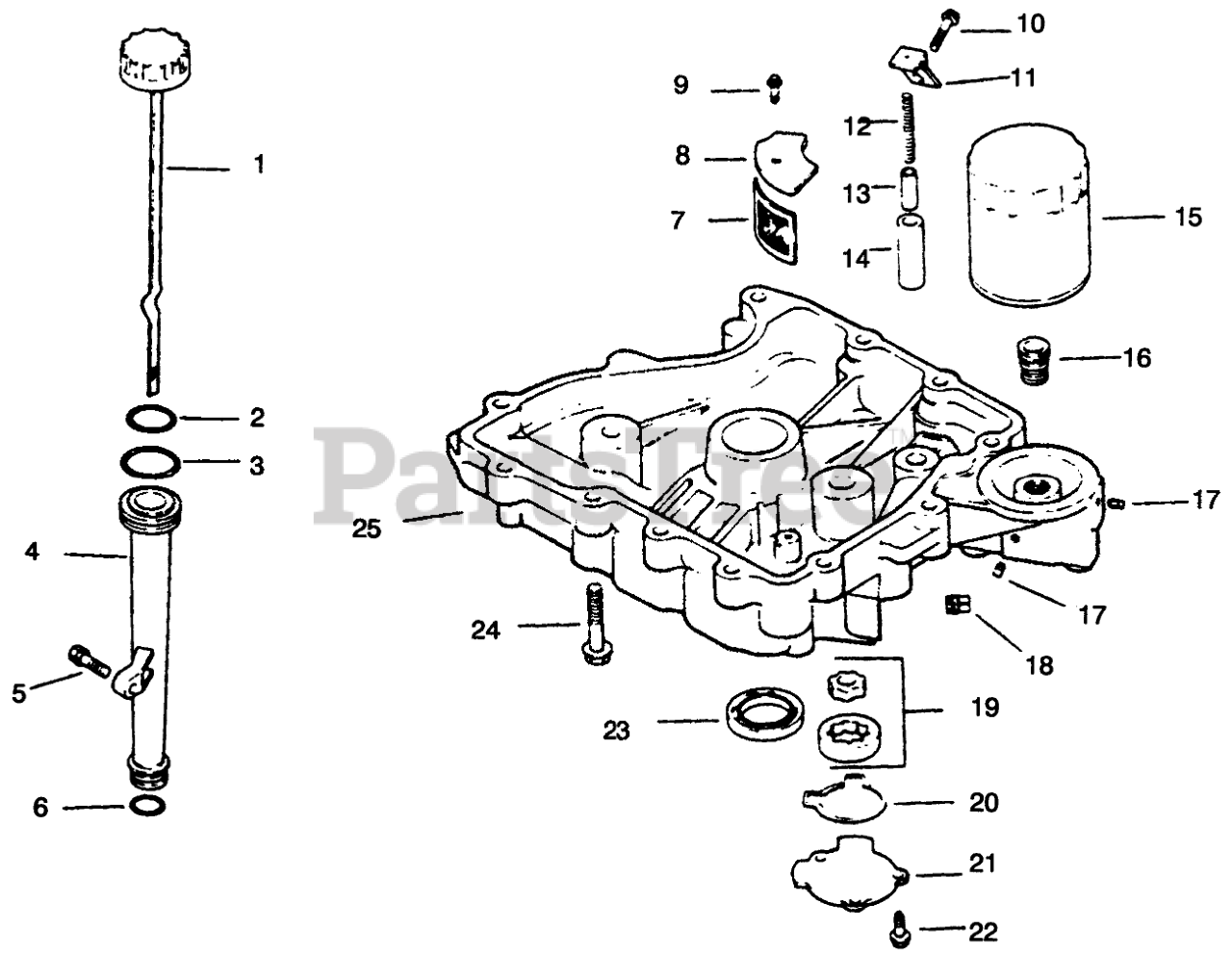

ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

  • Title

2

1213901

Plug-Cup

$

$

Not available

1

Toro 12-038-01

Dipstick Assembly

$

$

Currently unavailable

2

Toro 12-153-03

"O"Ring-Dipstick

$

$

Currently unavailable

3

Toro 12-153-02

"O"Ring-Upper Tube

$

$

Currently unavailable

4

Toro 12-123-04

Tube-Oil Fill

$

$

Currently unavailable

5

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

6

Toro 12-153-01

"O"Ring-Lower Tube

$

$

Currently unavailable

7

Toro 12-162-02

Screen-Oil Pick Up

$

$

Currently unavailable

8

Toro 12-096-03

Cover-Oil Screen

$

$

Currently unavailable

9

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

10

Kohler M-1051025

Screw
(Superseded to M-1039025-S)

$2.49

$

Usually ships in 2-5 days

0

11

Toro 12-126-02

Bracket-Oil Pump Relief Valve

$

$

Currently unavailable

12

Toro 12-089-03

Spring-Oil Pump Relief Valve

$

$

Currently unavailable

13

Toro 12-462-01

Piston-Oil Pump Relief Valve

$

$

Currently unavailable

14

Toro 12-208-01

Body-Oil Pump Relief Valve

$

$

Currently unavailable

15

Toro 52-050-02

Filter-Oil

$

$

Currently unavailable

16

Toro 12-136-01

Adapter-Oil Filter

$

$

Currently unavailable

17

Kohler X-75-1

Plug-SH 1/8
(Superseded to X-75-1-S)

$3.49

$

In Stock, only 1 left!

0

18

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

19

Toro 12-393-01

Pump-Oil Assembly

$

$

Currently unavailable

20

Toro 12-032-04

"O"Ring-Pump Cover

$

$

Currently unavailable

21

Toro 12-096-02

Cover-Oil Pump

$

$

Currently unavailable

22

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

23

Toro 12-032-03

Seal-Crankshaft

$

$

Currently unavailable

24

Kohler SM-0839045

Screw

$

$

Not available

25

Toro 12-199-09

Pan-Oil

$

$

Currently unavailable

Toro 25-755-13

Kit-Oil Fill Cap

Note: Not illustrated

$

$

Currently unavailable
