30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 049000001 - 049999999) (1994) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

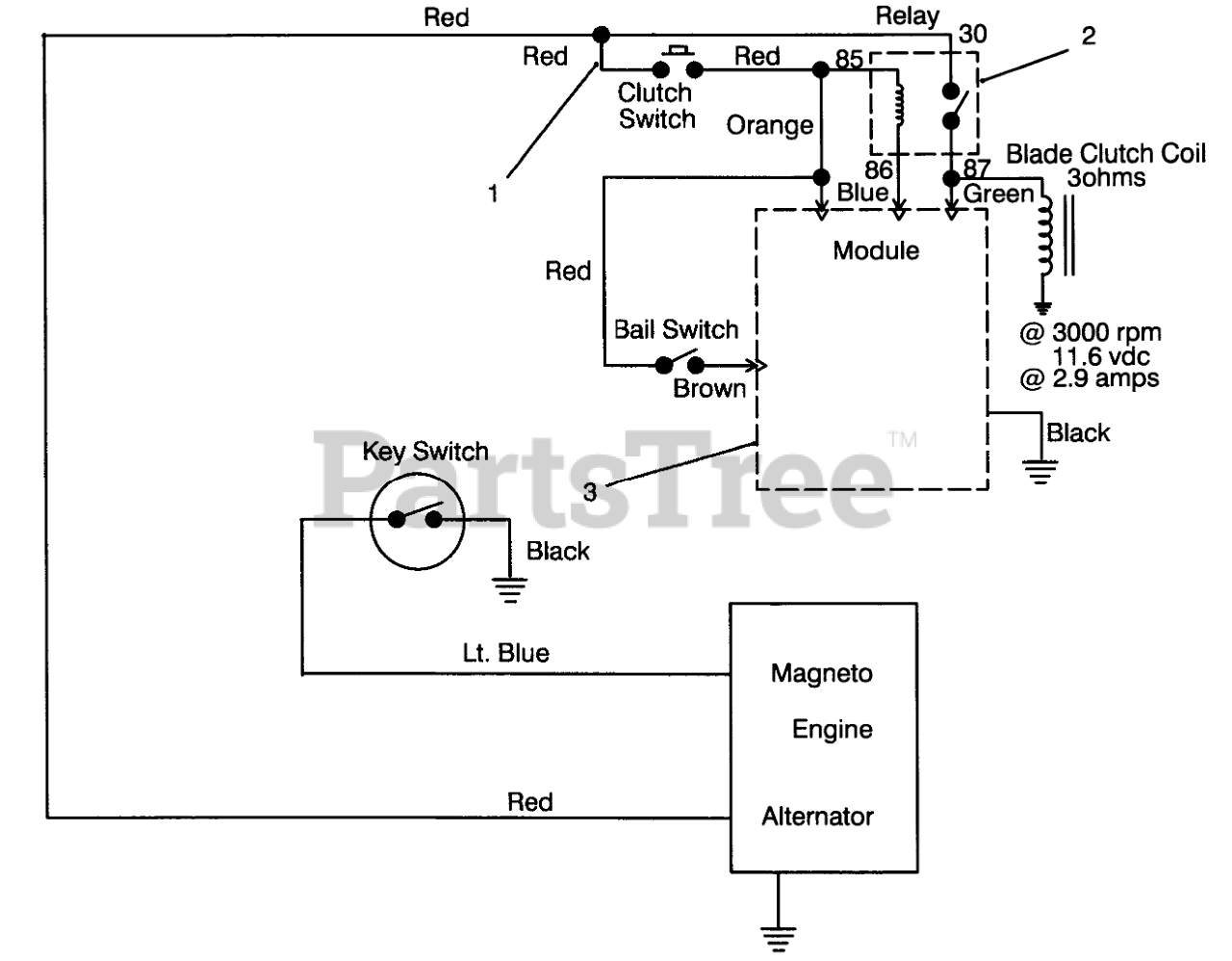

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 82-2260

WIRE HARNESS

$

$

Not available

2

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

3

Toro 82-3850

Module
(Superseded to 94-5818)

$

$

Not available

Toro 218-595

CONNECTOR-BODY

Note: Not illustrated

$

$

Not available
