30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 049000001 - 049999999) (1994) AIR INTAKE/FILTRATION GROUP-ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

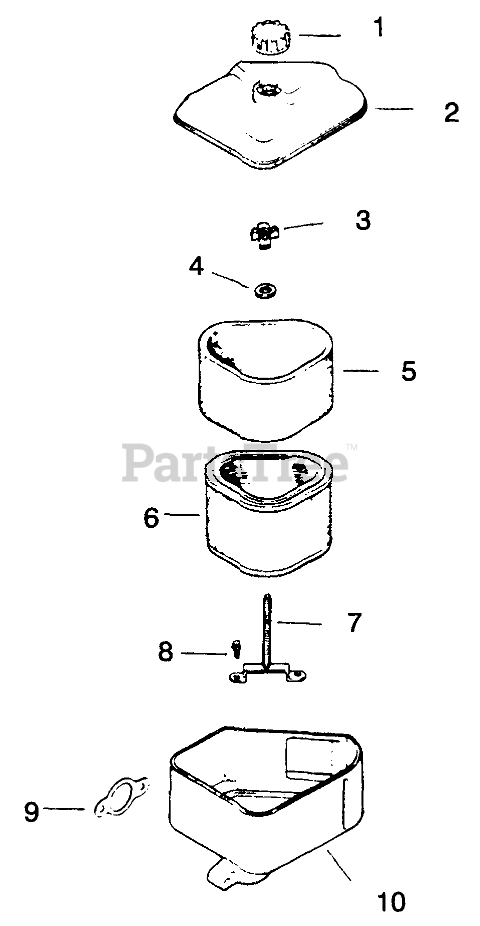

AIR INTAKE/FILTRATION GROUP-ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

  • Title

1

Kohler 12 341 01

Knob-Air Cleaner Cover
(Superseded to 12 341 01-S)

$15.99

$

Usually ships in 2-5 days

0

2

Kohler 12 096 06

Cover-Air Cleaner

$

$

Not available

3

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

$3.99

$

In Stock, only 2 left!

0

4

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

5

1208308

Element-Precleaner

$

$

Not available

6

Kohler 12 083 05

Element-Air Cleaner
(Superseded to 12 083 05-S)

$19.99

$

In Stock, Qty 5

0

7

Kohler 12 072 03

Stud-Mounting Plate
(Superseded to 12 072 03-S)

$9.49

$

Usually ships in 2-5 days

0

8

1208601

Screw

$

$

Not available

9

1204102

Gasket-Air Cleaner

$

$

Not available

10

Kohler 12 094 01

Base-Air Cleaner
(Superseded to 12 094 08)

$

$

Not available

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0
