30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

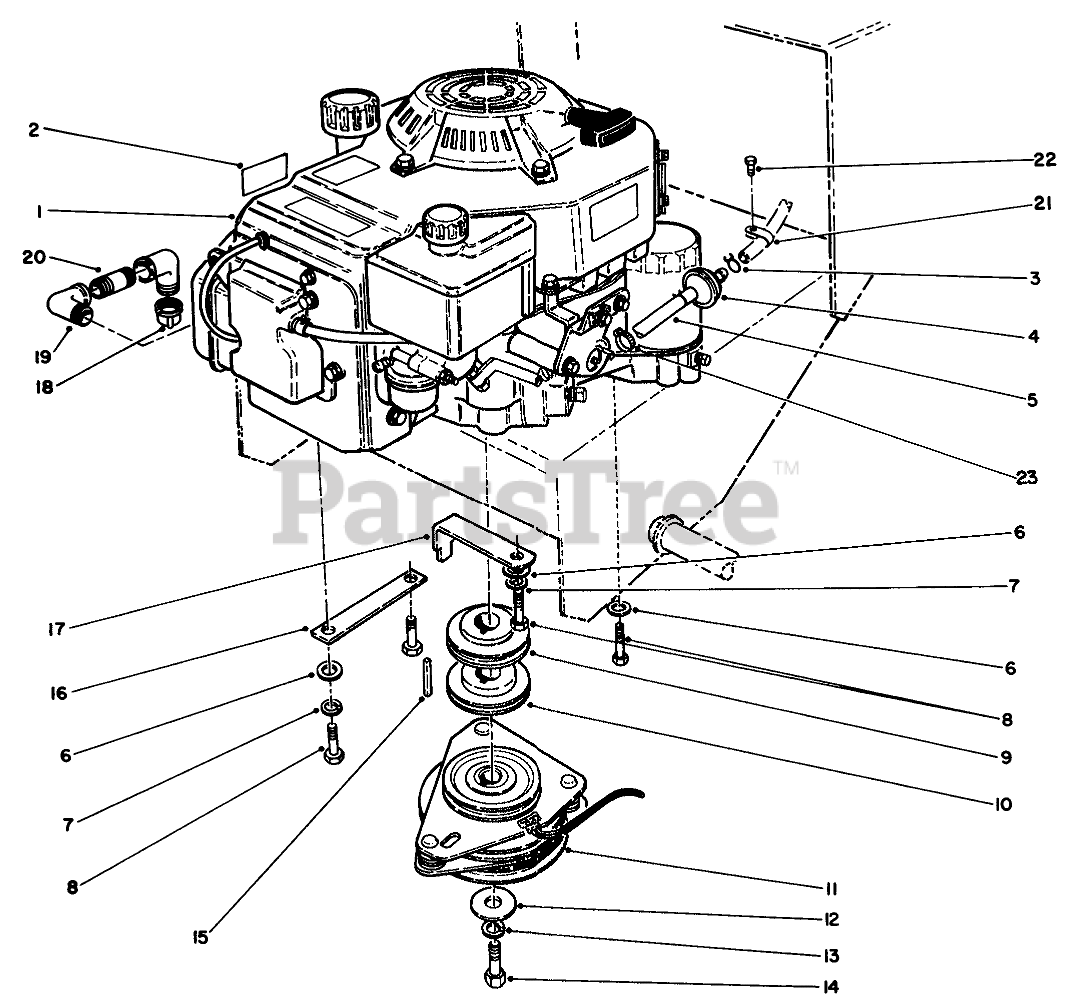

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

2

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

5

Toro 47-2964

HOSE-FUEL
(Superseded to 110-4895)

$19.99

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 57-6380

SCREW-HH
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

9

Toro 74-0060

SHEAVE-UPPER HALF

$21.99

$

Usually ships in 3-6 days

0

10

Toro 74-0050

SHEAVE-LOWER HALF

$21.99

$

Usually ships in 3-6 days

0

11

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

12

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

14

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

15

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

16

Toro 74-0930

Guard-Pulley
(Superseded to 74-0930-01)

$

$

Not available

17

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 1 left!

0

18

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

19

Toro 74-0950

ELBOW-STREET, 90 DEG

$

$

Not available

20

Toro 289-51

NIPPLE

$

$

Not available

21

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

22

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

23

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0
