30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 010000001 - 019999999) (1991) EXHAUST-KOHLER ENGINE MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

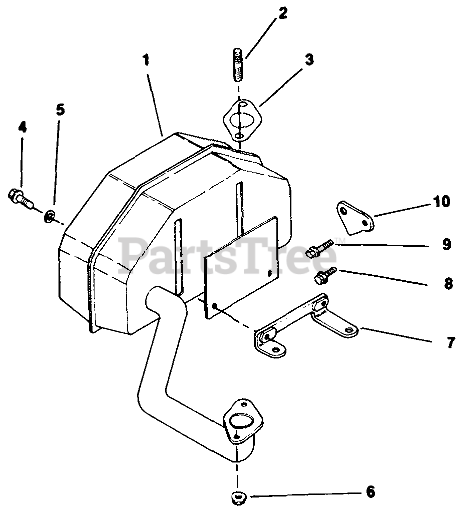

EXHAUST-KOHLER ENGINE MODEL NO. CV14 T-1412 Parts Diagram

  • Title
1

12_068_03

Muffler

$

$

Not available

2

Kohler M-0829036

Stud
(Superseded to M-0829033)

$3.99

$

In Stock, only 3 left!

0

3

12_042_03

Gasket-Exhaust

$

$

Not available

4

Kohler M-0645016

Screw
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

5

12_468_01

Washer

$

$

Not available

6

Toro Sm-0841080

Nut-Muffler

$

$

Currently unavailable

7

12_126_08

Bracket-Muffler

$

$

Not available

8

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

9

$

$

Currently unavailable

10

$

$

Currently unavailable

Toro 12_522_01

Short Block

$

$

Currently unavailable

12_755_01

Gasket Set

$

$

Not available
