30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 010000001 - 019999999) (1991) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

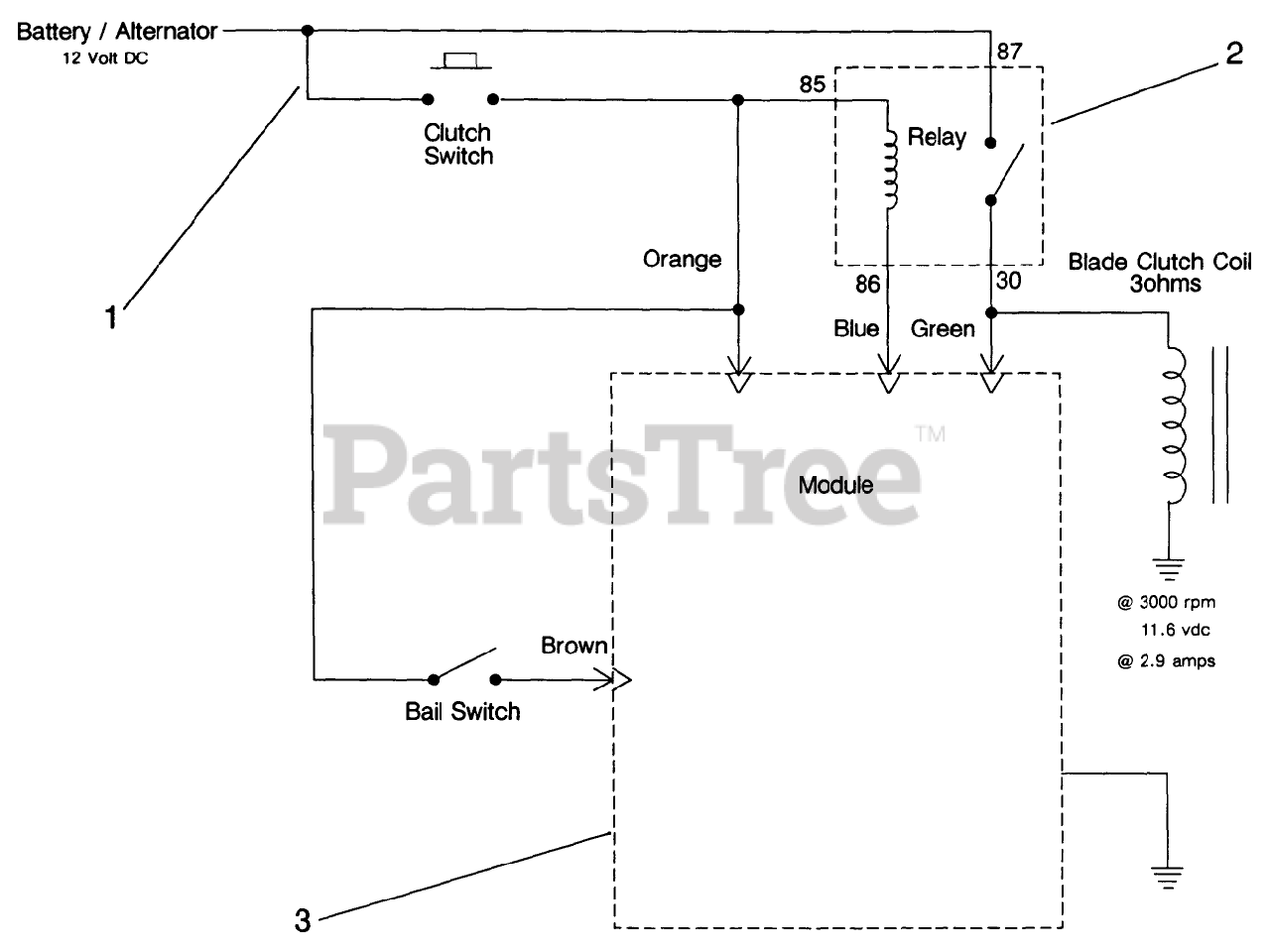

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 82-2260

WIRE HARNESS

$

$

Not available

2

Toro 82-3850

Module
(Superseded to 94-5818)

$

$

Not available

3

Toro 63-7540

Relay
(Superseded to 63-7590)

$83.99

$

Usually ships in 3-6 days
