30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 010000001 - 019999999) (1991) BLOWER HOUSING & BAFFLE-KOHLER ENGINE MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

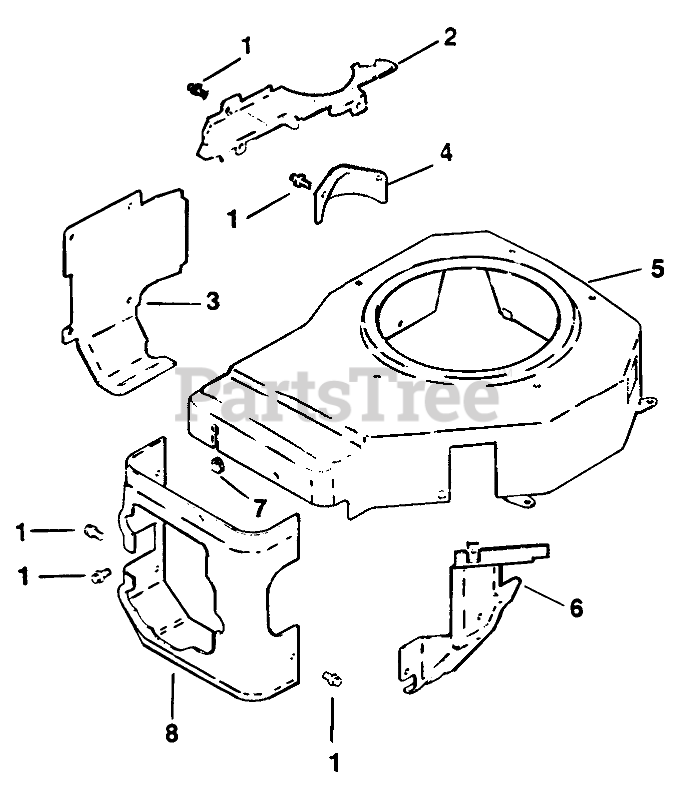

BLOWER HOUSING & BAFFLE-KOHLER ENGINE MODEL NO. CV14 T-1412 Parts Diagram

  • Title

1

Kohler SM-0545010

Screw

$

$

Not available

2

12_146_07

Plate Blower

$

$

Not available

3

12_063_01

Babe-Cylinder Barrel

$

$

Not available

4

12_096_05

Cover-Starter

$

$

Not available

5

12_027_03

Cover-Housing

$

$

Not available

6

12_063_05

Bade-Carburetor

$

$

Not available

7

12_313_03

Grommet

$

$

Not available

8

12_063_03

Baffle-Cylinder Head

$

$

Not available

12_133_14

Decal-H.P.

$

$

Not available
