30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 010000001 - 019999999) (1991) AIR INTAKE/FILTRATION-KOHLER ENGINE MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

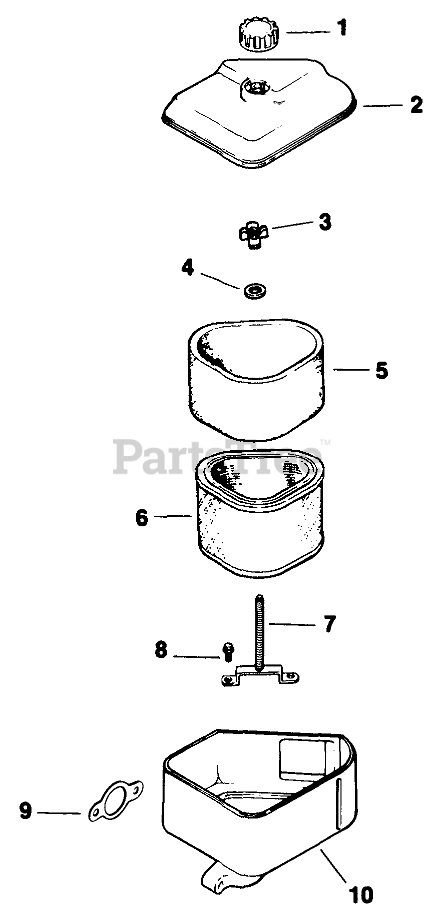

AIR INTAKE/FILTRATION-KOHLER ENGINE MODEL NO. CV14 T-1412 Parts Diagram

  • Title
1

12_341_01

Knob-Cover

$

$

Not available

2

12_096_06

Cover-Air Cleaner

$

$

Not available

3

12_100_01

Nut-Wing

$

$

Not available

4

Toro X-25-63

Washer

$

$

Currently unavailable

5

12_083_08

Element-Precleaner

$

$

Not available

6

12_083_05

Element-Air Cleaner

$

$

Not available

7

12_072_03

Plate-Stud

$

$

Not available

8

12_086_01

Screw

$

$

Not available

9

12_041_02

Gasket

$

$

Not available

10

12_094_01

Base

$

$

Not available

11

12_113_04

Decal

$

$

Not available
