30172 TE - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210999999) (2001) TRANSMISSION ASSEMBLY NO. 1-323500 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

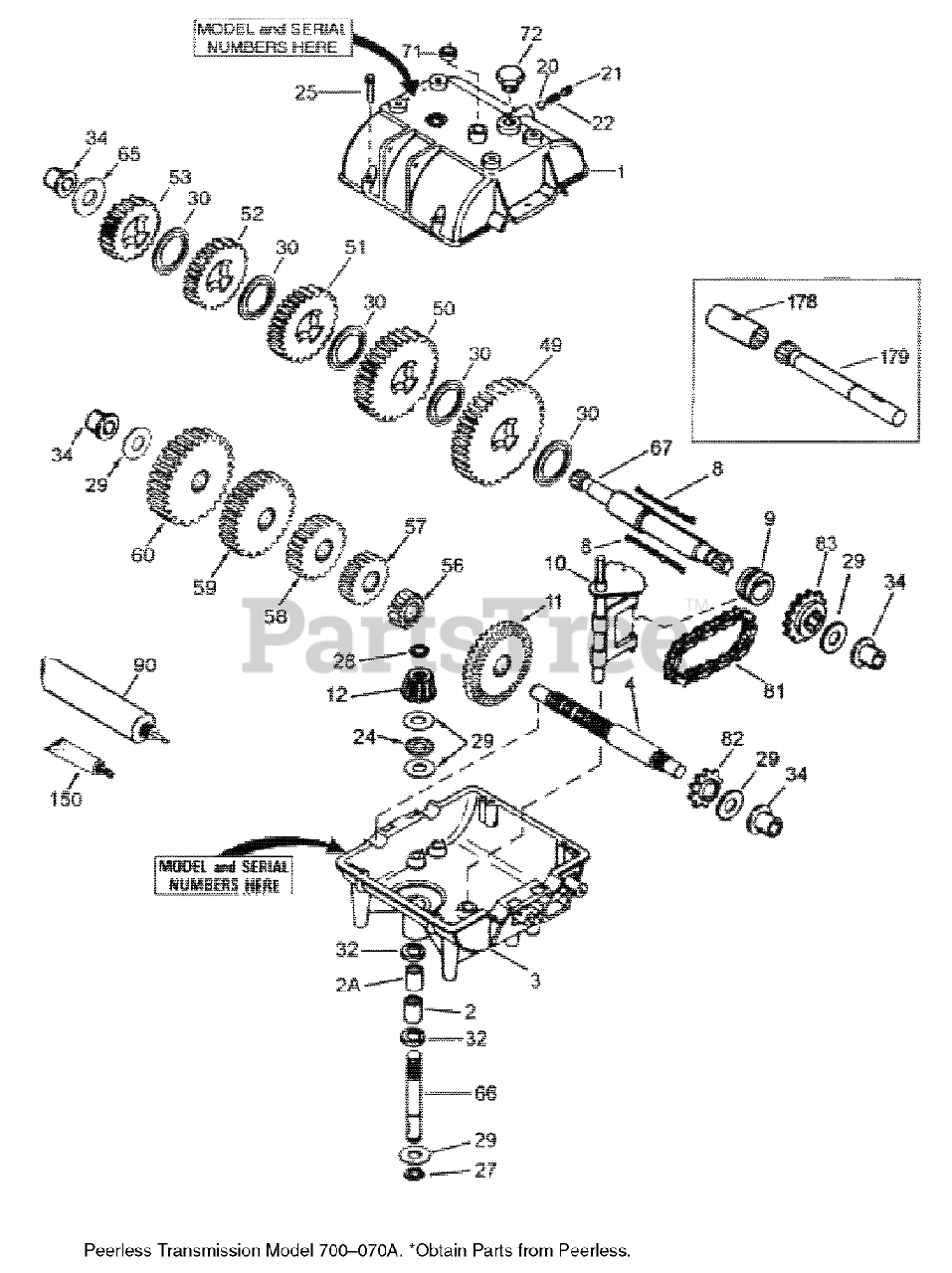

TRANSMISSION ASSEMBLY NO. 1-323500 Parts Diagram

  • Title

1

Toro 772083A

Cover-Transmission

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

2

Toro 780086A

Bearing-Needle

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

2A

Toro 780142

Bearing-Needle

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

3

Toro 770061A

Case-Transmission

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

4

Toro 776134

Countershaft

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

8

Toro 792089A

Key

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

9

Toro 784266

Collar-Shift

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

10

Toro 784376

Shift Rod Fork

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

11

Toro 778154

Gear-Bevel, 42 teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

12

Toro 778176

Bevel Pinion (14 Teeth-Steel)

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

20

Toro 792077A

Ball-Steel

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

21

Toro 792078

Screw-Set

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

22

Toro 792079

Spring

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

24

Toro 780071

Bearing-Thrust

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

25

Toro 792073A

Screw

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

27

Toro 792035

Ring-Snap

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

28

Toro 788040

Ring-Retainer

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

29

Toro 780072

Washer

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

30

Toro 780108

Washer

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

32

Toro 792001

O Ring

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

34

Toro 780105A

Bushing-Flange

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

49

Toro 778146A

Gear-Spur, 37 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

50

Toro 778125

Gear-Spur, 35 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

51

Toro 778239A

Spur Gear (32 Teeth-Steel)

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

52

Toro 778124A

Gear-Spur, 30 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

53

Toro 778123A

Gear-Spur, 25 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

56

Toro 778145

Gear-Spur, 12 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

57

Toro 778151

Gear-Spur, 15 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

58

Toro 778240

Spur Gear (18 Teeth-Steel)

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

59

Toro 778126A

Gear-Spur, 20 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

60

Toro 778127A

Gear-Spur, 25 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

65

Toro 780139

Washer

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

66

Toro 776135

Shaft-Input

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

67

Toro 776402

Shifter and Brake Shaft

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

71

Toro 788069

Cut Seal-Square

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

72

Toro 792074

Plug

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

81

Toro 786081

Chain-Roller #41

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

82

Toro 786082

Sprocket-9 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

83

Toro 786083

Sprocket-18 Teeth

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

90

Toro 788067b

Grease 32 Oz

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

150

Toro 510334

Gasket Eliminator

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

178

Toro 786176

Coupling (Optional)

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable

179

Toro 776401

Connector Shaft(Optional)

Note: Obtain Parts from Peerless. Peerless Transmission Model 700-070A.

$

$

Currently unavailable
