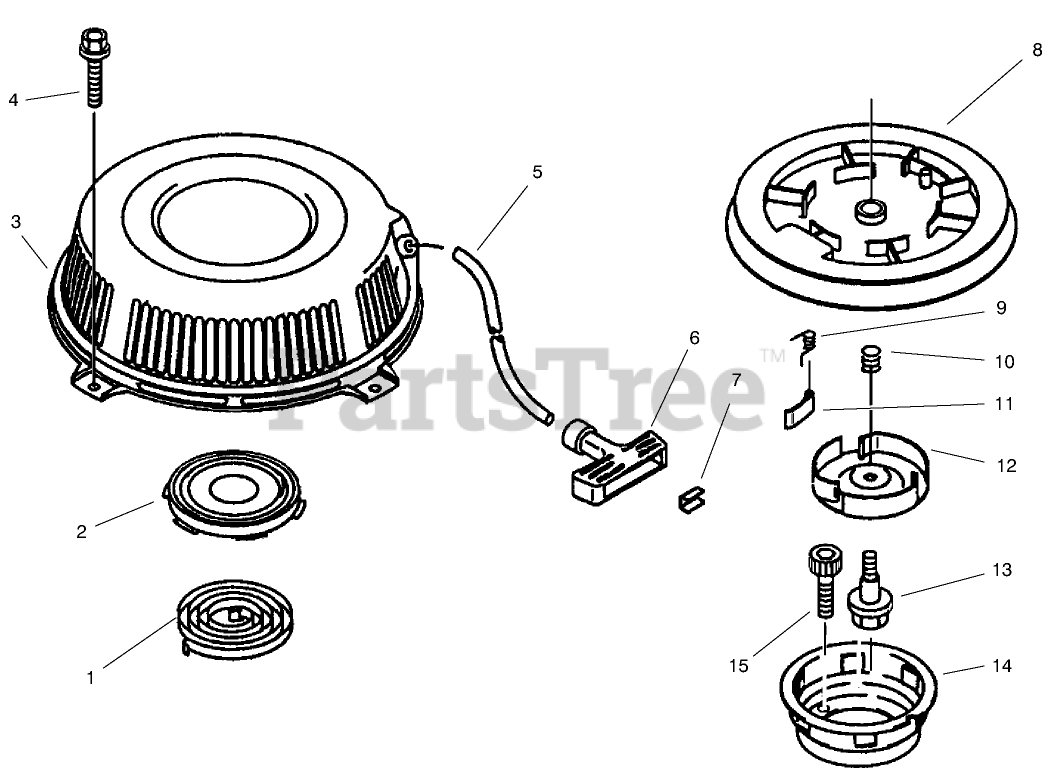

30172 TE - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210999999) (2001) STARTER Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

STARTER Parts Diagram

  • Title

1

Toro 90281-2267

Spring-Recoil

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

2

Kawasaki 32099-2060

Case

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$7.99

$

In Stock, only 4 left!

0

3

Toro 32099-2239-yk

Case-Recoil Starter

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

4

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$0.99

$

In Stock, Qty 12

0

5

Kawasaki 59106-2060

Rope

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

6

Kawasaki 46075-2059

Grip
(Superseded to 46075-2016)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$7.49

$

Usually ships in 2-5 days

0

7

Kawasaki 92022-2248

Washer

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, only 4 left!

0

8

Kawasaki 59101-2054

Reel

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

9

Kawasaki 92081-2021

Spring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, only 3 left!

0

10

Toro 92081-2268

Spring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

11

Kawasaki 13165-2073

Pawl
(Superseded to 13165-2057)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$5.49

$

In Stock, only 2 left!

0

12

Kawasaki 14020-2054

Retainer

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

13

Kawasaki 92001-2027

Bolt
(Superseded to 314501-3447A)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$2.99

$

In Stock, only 3 left!

0

14

Toro 49080-2144

Pulley-Starting

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

15

Toro 120p0620

Bolt-Socket

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

Kawasaki 49088-2412-YK

Starter-Recoil

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$175.99

$

In Stock, only 1 left!

0

Kawasaki 49088-2412-YK

Starter-Recoil

Note: Not illustrated

$175.99

$

In Stock, only 1 left!

0
