30172 TE - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210999999) (2001) LUBRICATION EQUIPMENT Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

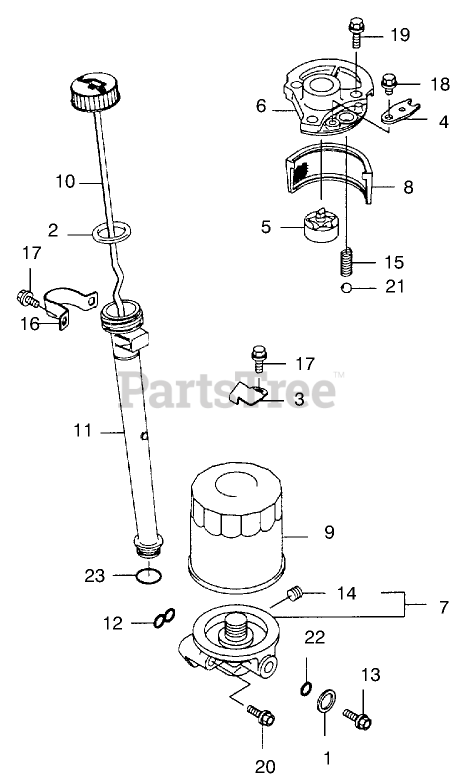

LUBRICATION EQUIPMENT Parts Diagram

  • Title

1

Kawasaki 11009-2175

Gasket
(Superseded to 317370-7883-00)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, Qty 15

0

2

Kawasaki 11009-2346

Gasket
(Superseded to M88482)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$2.49

$

In Stock, Qty 6

0

3

Kawasaki 13169-2359

Plate

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

4

Kawasaki 13270-2054

Plate
(Superseded to 13169-2360)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$0.99

$

Usually ships in 2-5 days

0

5

Toro 16082-2057

Pump ASM-Oil

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

6

Toro 16142-6001

Cover-Pump

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

7

Toro 23062-6001

Adapter

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

8

Kawasaki 49065-2056

Filter-Oil

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

9

Kawasaki 49065-2071

Filter-Oil

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$15.99

$

In Stock, Qty 6

0

10

Kawasaki 52005-2058

Gauge

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

11

Kawasaki 59231-2059

Filler

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

12

Kawasaki 92055-2063

Seal

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$4.49

$

In Stock, only 3 left!

0

13

Kawasaki 92066-2093

Plug

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

14

Kawasaki 92066-2211

Plug

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$2.99

$

Usually ships in 2-5 days

0

15

Kawasaki 92081-2216

Spring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$0.99

$

Usually ships in 2-5 days

0

16

Toro 92170-2014-9H

Clamp

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

17

Kawasaki 130B0508

Bolt
(Superseded to 130AA0508)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$0.99

$

In Stock, Qty 8

0

18

Toro 130B610

Bolt-Flanged

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

19

Toro 130G0825

Bolt-Flanged (8X25)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

20

Kawasaki 130G0845

Bolt-Flanged (8X45)
(Superseded to 130BA0845)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, Qty 13

0

21

Kawasaki 600A1000

Ball

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$0.99

$

In Stock, Qty 7

0

22

Kawasaki 670D1507

O Ring
(Superseded to 92055-0847)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, only 1 left!

0

23

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, Qty 20+

0
