30172 TE - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210999999) (2001) LOWER CONTROL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

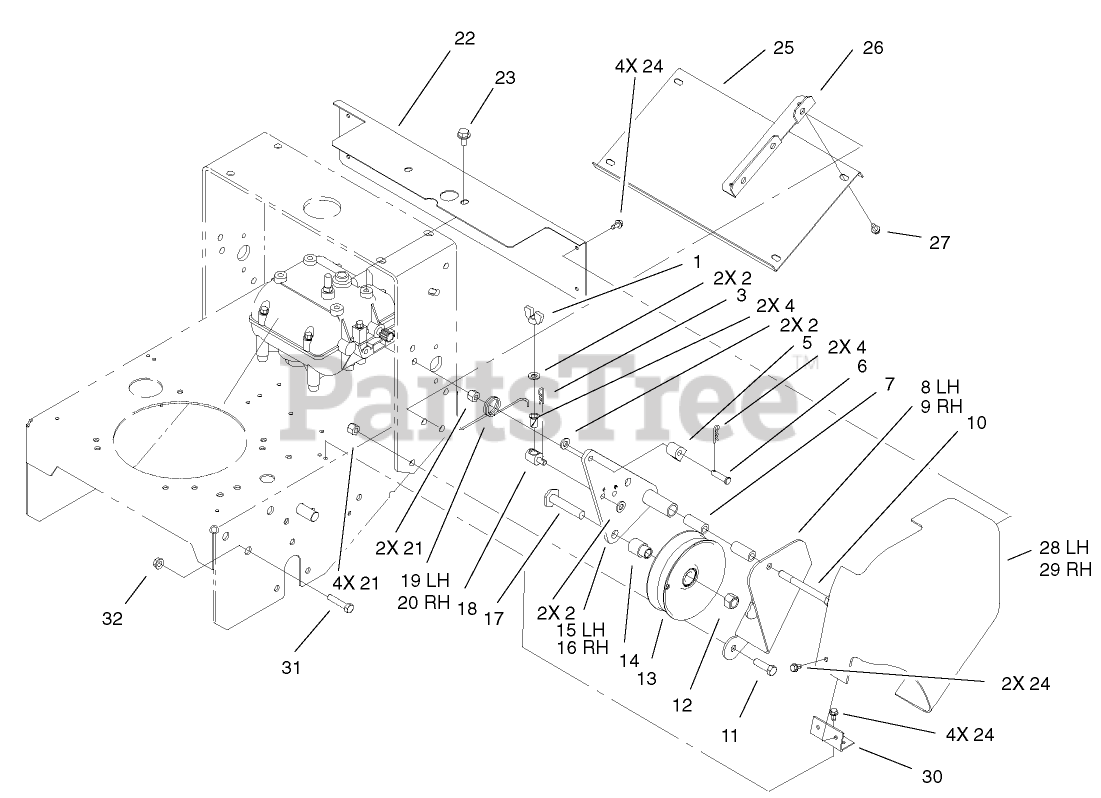

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 32103-25

NUT-WING

$5.49

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

4

Toro 52-2890

BUSHING-NYLON

$3.49

$

Usually ships in 3-6 days

0

5

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

6

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

7

Toro 74-0040

SPACER-PIVOT, IDLER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 67-6380-01

BRACKET-SUPPORT, LH

$126.99

$

Usually ships in 3-6 days

0

9

Toro 67-6370-01

BRACKET-SUPPORT, RH

$126.99

$

Usually ships in 3-6 days

0

10

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

11

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-2800

PULLEY-IDLER

$44.99

$

Usually ships in 3-6 days

0

14

Toro 95-2801

SPACER-PULLEY

$9.49

$

Usually ships in 3-6 days

0

15

Toro 74-0220-01

BRACKET-IDLER, LH

$

$

Not available

16

Toro 74-0230-01

BRACKET-IDLER, RH

$

$

Not available

17

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

18

Toro 68-9690

FITTING-ROD

$56.99

$

Usually ships in 3-6 days

0

19

Toro 51-4380

SPRING-TORSION, LH

$17.99

$

In Stock, only 1 left!

0

20

Toro 51-4370

SPRING-TORSION, RH

$17.99

$

In Stock, only 1 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

22

Toro 104-8158-03

GUARD-SHAFT, TRANSMISSION

$124.99

$

Usually ships in 3-6 days

0

23

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

24

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

25

Toro 93-7437-01

PANEL-BOTTOM

$

$

Not available

26

Toro 93-7436-03

ANGLE-MOUNTING

$

$

Not available

27

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

28

Toro 104-8159

Guard-Belt, LH
(Superseded to 105-4659)

$

$

Not available

29

Toro 104-8160

Guard-Belt, RH
(Superseded to 105-4660)

$

$

Not available

30

Toro 104-6399-01

MOUNT-BELT GUARD

$

$

Not available

31

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

32

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0
