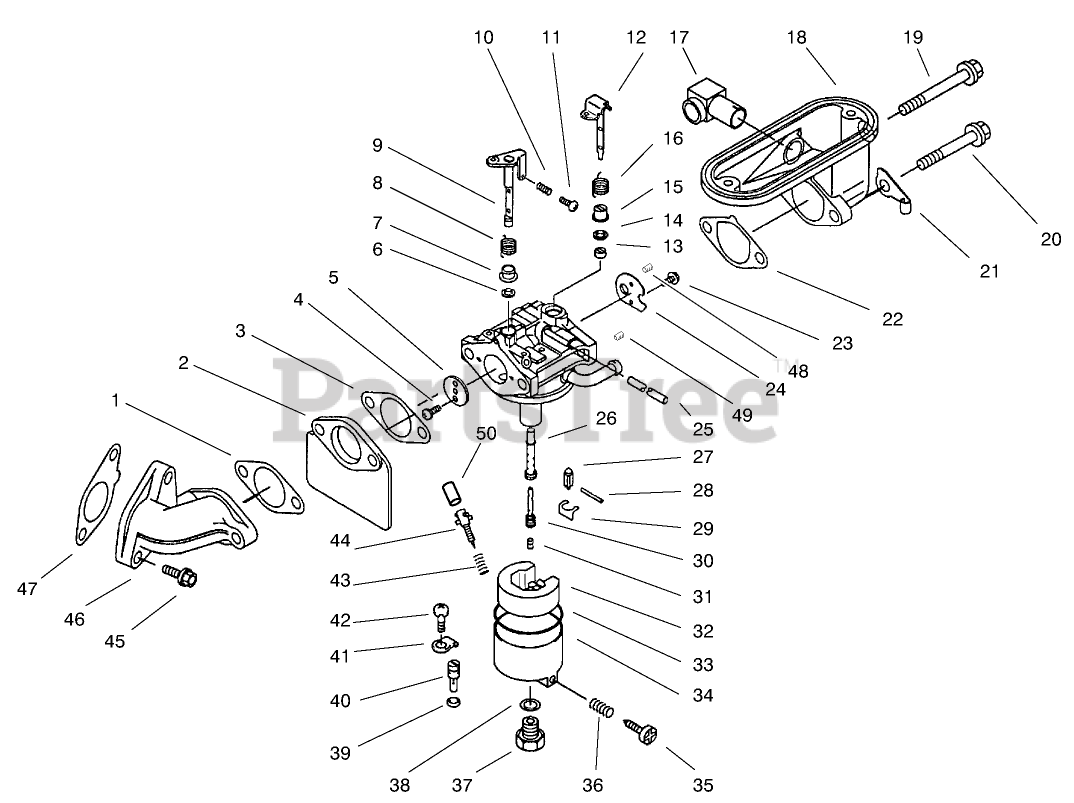

30172 TE - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210999999) (2001) CRABURETOR Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

CRABURETOR Parts Diagram

  • Title

Toro 15003-2467

Carburetor ASM

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

1

Kawasaki 11060-2338

Gasket
(Superseded to 11009-2344)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$0.99

$

In Stock, Qty 5

0

2

Kawasaki 16073-2091

Insulator

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

3

Kawasaki 11060-2339

Gasket-Carburetor
(Superseded to 11009-2343)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.49

$

In Stock, Qty 20+

0

4

Kawasaki 92009-2080

Screw
(Superseded to 92009-3710)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

5

Kawasaki 16025-2141

Valve-Throttle #110

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$8.99

$

Usually ships in 2-5 days

0

6

Kawasaki 92093-2082

Seal

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$2.49

$

In Stock, only 2 left!

0

7

Kawasaki 92027-2025

Collar

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$3.99

$

Usually ships in 2-5 days

0

8

Kawasaki 92081-2077

Spring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$8.99

$

In Stock, only 1 left!

0

9

Kawasaki 16041-2009

Shaft-Throttle

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$29.99

$

In Stock, only 1 left!

0

10

Toro 92081-2046

Spring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

11

Toro 92009-2079

Screw

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

12

Toro 16041-2010

Shaft-Choke

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

13

Kawasaki 92027-2003

Collar

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$3.99

$

Usually ships in 2-5 days

0

14

Kawasaki 92093-2069

Seal

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.49

$

In Stock, only 4 left!

0

15

Toro 92143-2142

Ring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

16

Kawasaki 92144-2160

Spring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

17

Toro 59071-2062

Joint

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

18

Kawasaki 16060-2108

Pipe-Intake

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

19

Kawasaki 92002-2254

Bolt

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, only 4 left!

0

20

Toro 92002-2253

Bolt

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

21

Kawasaki 92170-2019

Clamp

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

22

Kawasaki 11009-2025

Gasket
(Superseded to 11009-2087)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$2.49

$

In Stock, Qty 18

0

23

Kawasaki 92009-2081

Screw
(Superseded to 92009-2026)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, only 1 left!

0

24

Kawasaki 16126-2206

Valve-Choke

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$17.99

$

In Stock, only 1 left!

0

25

Kawasaki 92059-2266

Tube
(Superseded to 99916-2065)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$7.49

$

In Stock, only 1 left!

0

26

Toro 49121-2207

Nozzle-Main

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

27

Kawasaki 16030-2073

Valve-Float

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$25.99

$

In Stock, Qty 8

0

28

Kawasaki 92043-2006

Pin

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$3.49

$

In Stock, only 1 left!

0

29

Kawasaki 92033-2067

Ring-Snap

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$5.49

$

In Stock, only 3 left!

0

30

Toro 49123-2078

Holder-Main Jet

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

31

Toro 92063-2294

Jet-Main

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

32

Kawasaki 16031-2066

Float

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$29.99

$

In Stock, only 1 left!

0

33

Kawasaki 11009-2024

Gasket
(Superseded to 313650-6128-00)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$4.49

$

In Stock, only 4 left!

0

34

Kawasaki 16020-2109

Chamber-Float
(Superseded to 16020-2094)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$47.99

$

Usually ships in 2-5 days

0

35

Kawasaki 92009-2015

Screw
(Superseded to 315470-6133A)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$5.49

$

Usually ships in 2-5 days

0

36

Kawasaki 92081-2009

Spring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$3.49

$

In Stock, only 3 left!

0

37

Kawasaki 92150-2146

Bolt

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$4.49

$

In Stock, only 1 left!

0

38

Toro 1100a-2025

Gasket

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

39

Kawasaki 16038-024

Gasket

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, only 1 left!

0

40

Kawasaki 92064-2108

Jet-Pilot

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

41

Kawasaki 13183-2252

Plate

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$3.99

$

In Stock, only 4 left!

0

42

Kawasaki 92009-2244

Screw

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$1.99

$

In Stock, only 1 left!

0

43

Kawasaki 92081-2008

Spring

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$2.99

$

In Stock, only 3 left!

0

44

Kawasaki 16014-2076

Screw-Pilot Air

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$15.99

$

Usually ships in 2-5 days

0

45

Toro 130G0825

Bolt-Flanged (8X25)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Currently unavailable

46

Kawasaki 16060-2109

Pipe-Intake
(Superseded to M88502)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

47

Kawasaki 11060-2337

Gasket-Intake Pipe
(Superseded to 11009-2342)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$

$

Not available

48

Kawasaki 16035-2063

Jet-Air #0.9

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$13.99

$

Usually ships in 2-5 days

0

49

Kawasaki 16035-2051

Jet-Air #1.4
(Superseded to 313550-6113-10)

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$10.99

$

Usually ships in 2-5 days

0

50

Kawasaki 39076-2053

Limiter

Note: Obtain Parts From Kawasaki. Kawasaki Model FB460V Type LS08

$6.99

$

In Stock, only 1 left!

0
