30171 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 230005001 - 230999999) (2003) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FB460V-MS14 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

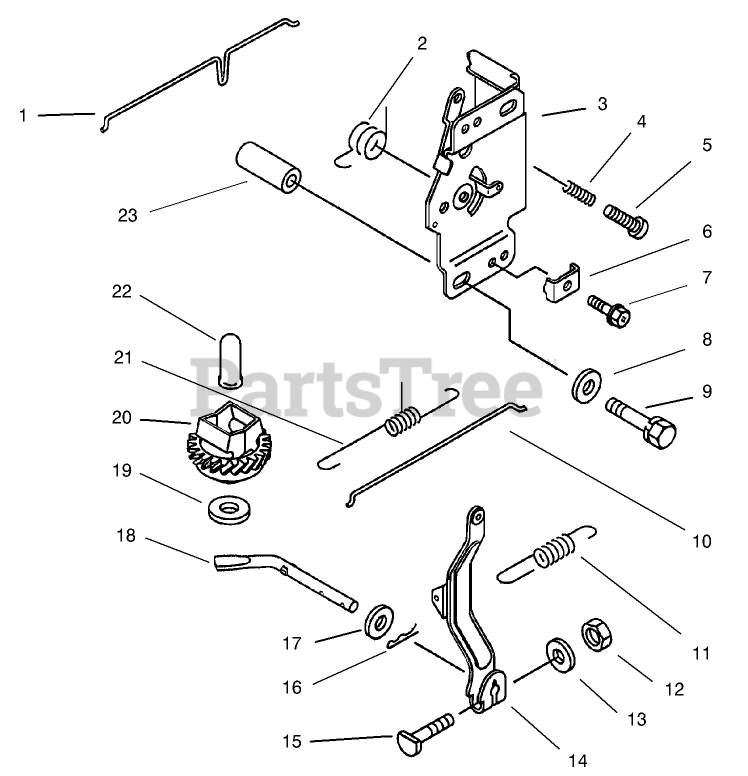

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FB460V-MS14 Parts Diagram

  • Title
1

Kawasaki 16169-2126

Link-Choke
(Superseded to 16169-2074)

Note: Obtain Parts From Kawasaki

$

$

Not available

2

Kawasaki 92081-2316

Spring

Note: Obtain Parts From Kawasaki

$

$

Not available

3

Toro 49113-2090

Panel Incl #2 4-7

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

4

Kawasaki 92144-2266

Spring

Note: Obtain Parts From Kawasaki

$5.49

$

Usually ships in 2-5 days

0

5

Toro 214b0416

Screw

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

6

Kawasaki 92037-2020

Clamp

Note: Obtain Parts From Kawasaki

$1.99

$

Usually ships in 2-5 days

0

7

Toro 92002-2188

Bolt

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

8

Toro 92200-2070

Washer

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

9

Toro 180b0650

Bolt

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

10

Kawasaki 16171-2083

Link
(Superseded to 16171-2001)

Note: Obtain Parts From Kawasaki

$

$

Not available

11

Kawasaki 92144-2008

Spring

Note: Obtain Parts From Kawasaki

$

$

Not available

12

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

13

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, only 2 left!

0

14

Kawasaki 21187-2052

Arm ASM
(Superseded to 21187-2001)

Note: Obtain Parts From Kawasaki

$

$

Not available

15

Kawasaki 92002-2269

Bolt (6X28)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 6

0

16

Kawasaki 554A0600

Pin-Snap (1.2 X 21.2)
(Superseded to 554DA0600)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 3 left!

0

17

Kawasaki 92200-2029

WASHER (6.5X11.5X2.0)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, only 2 left!

0

18

Toro 39003-2072

Arm-Pivot

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

19

Kawasaki 92200-2036

Washer (6.2X20X0.5)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 13

0

20

Kawasaki 49110-2084

Governor ASM
(Superseded to 49110-2067)

Note: Obtain Parts From Kawasaki

$

$

Not available

21

Toro 92081-2213

Spring

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

22

Kawasaki 42036-2060

Sleeve
(Superseded to 42036-2059)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 11

0

23

Kawasaki 92027-2071

Collar

Note: Obtain Parts From Kawasaki

$2.49

$

Usually ships in 2-5 days

0
