30171 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 230005001 - 230999999) (2003) AIR FILTER ASSEMBLY KAWASAKI FB460V-MS14 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

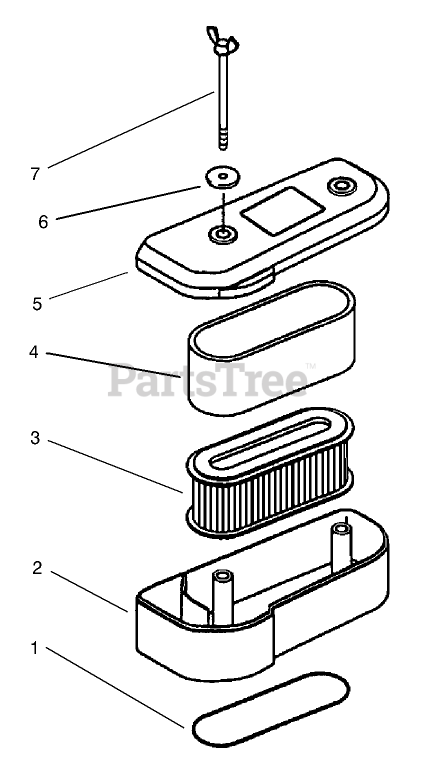

AIR FILTER ASSEMBLY KAWASAKI FB460V-MS14 Parts Diagram

  • Title

1

Kawasaki 11009-2443

Gasket
(Superseded to 11009-2340)

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, only 1 left!

0

2

Toro 11011-2174

CASE-Air Filter

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

3

Kawasaki 11013-2021

Element

Note: Obtain Parts From Kawasaki

$20.99

$

In Stock, only 1 left!

0

4

Kawasaki 11013-2020

Element

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 13

0

5

Kawasaki 11012-2192

CAP-Air Filter

Note: Obtain Parts From Kawasaki

$

$

Not available

6

Kawasaki 92022-2220

Washer
(Superseded to 92200-0423)

Note: Obtain Parts From Kawasaki

$

$

Not available

7

Kawasaki 92002-2230

Bolt

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, only 2 left!

0

Toro 11010-2291

Filter ASM

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
