30171 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 200000001 - 200999999) (2000) FRONT CASTER & BLADE BRAKE ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

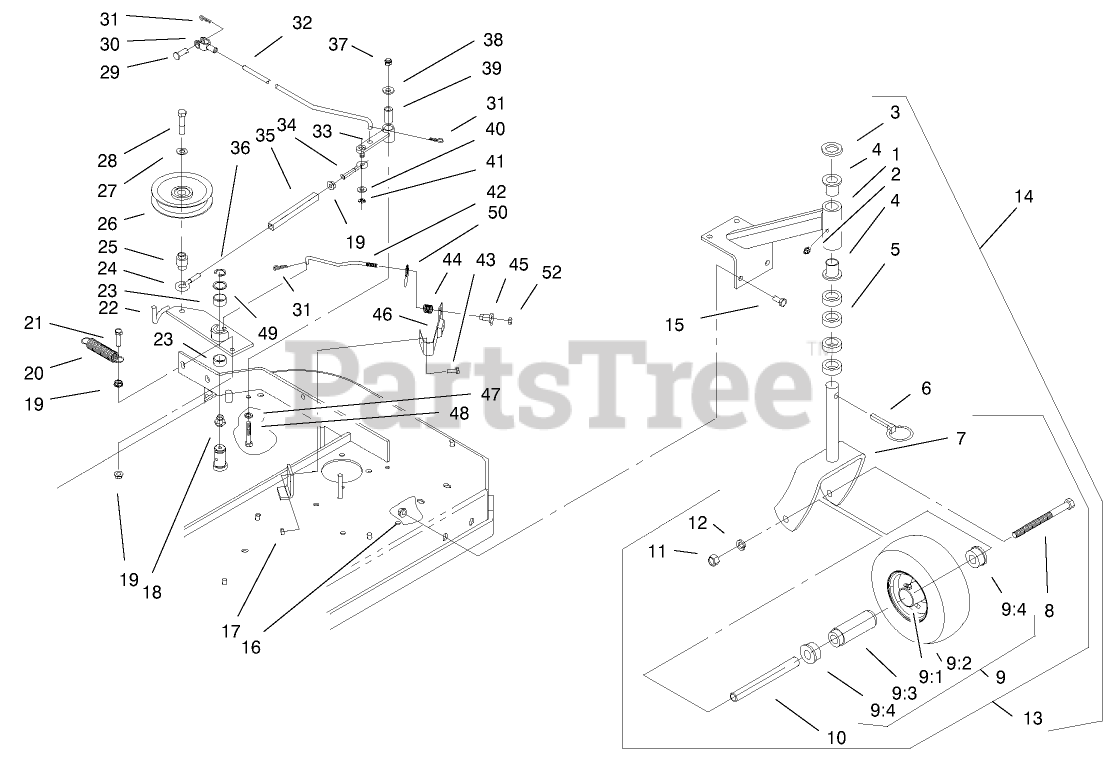

FRONT CASTER & BLADE BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro E302194

Support-Caster
(Superseded to 1-302203)

$299.99

$

Usually ships in 3-6 days

0

2

Toro 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

3

Toro E513338

Washer
(Superseded to 1-513338)

$4.49

$

In Stock, Qty 20+

0

4

Toro E303514

Bearing-Flanged
(Superseded to 1-303514)

$12.99

$

In Stock, Qty 20+

0

5

Toro E303314

Spacer
(Superseded to 1-303314)

$6.49

$

In Stock, Qty 20+

0

6

Toro E809020

Pin
(Superseded to 1-809020)

$11.99

$

In Stock, Qty 6

0

7

Toro E322145

Fork
(Superseded to 116-7942-01)

$95.99

$

In Stock, only 3 left!

0

8

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

9

WHEEL AND TIRE ASM

$

$

Not available

9:1

Toro E513807

Wheel Hub ASM
(Superseded to 1-513648)

$91.99

$

In Stock, only 1 left!

0

9:2

Toro E513808

Tire
(Superseded to 1-513808)

$43.99

$

In Stock, only 4 left!

0

9:3

Toro E513809

Bearing
(Superseded to 1-513809)

$35.99

$

In Stock, Qty 20+

0

9:4

Toro E513810

Bushing
(Superseded to 1-513810)

$5.99

$

In Stock, Qty 20+

0

10

Toro E513547

Spacer
(Superseded to 1-513547)

$12.99

$

In Stock, Qty 20+

0

11

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

13

Toro E322154

Caster Wheel ASM
(Superseded to 1-322154)

$

$

Not available

14

Toro E322153

Caster/Mount ASM
(Superseded to 1-322153)

$

$

Not available

15

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro E323071

Spring
(Superseded to 1-323071)

$15.99

$

In Stock, Qty 20+

0

21

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

22

Toro E324408

Engagement Arm w/Bushings
(Superseded to 103-3600)

$133.99

$

Usually ships in 3-6 days

0

23

Toro E323729

Bearing-Sleeve
(Superseded to 1-323729)

$5.49

$

In Stock, Qty 12

0

24

Toro E303348

Eye Bolt
(Superseded to 1-303348)

$6.49

$

In Stock, Qty 17

0

25

Toro E303434

Bushing
(Superseded to 1-303434)

$14.99

$

In Stock, only 1 left!

0

26

Toro E603843

Pulley-Idler
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 20+

0

27

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

28

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro E808280

Pin-Clevis
(Superseded to 1-808280)

$2.99

$

In Stock, Qty 20+

0

30

Toro E303105

Yoke
(Superseded to 1-303105)

$12.99

$

In Stock, only 2 left!

0

31

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

32

Toro E323303

Linkage-Assist Arm
(Superseded to 1-323303)

$25.99

$

In Stock, only 2 left!

0

33

Toro E322235

Assist Arm ASM
(Superseded to 1-322235)

$54.99

$

Usually ships in 3-6 days

0

34

Toro E303238

Eye Bolt
(Superseded to 1-303238)

$6.49

$

In Stock, Qty 15

0

35

Toro E303236

Turnbuckle Body
(Superseded to 1-303236)

$22.99

$

In Stock, Qty 9

0

36

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro E403179

Tube-Pivot
(Superseded to 1-403179)

$18.99

$

Usually ships in 3-6 days

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro E808512

E-Ring
(Superseded to 32120-35)

$4.49

$

In Stock, only 4 left!

0

42

Toro E323718

Rod-Brake
(Superseded to 1-323718)

$26.99

$

Usually ships in 3-6 days

0

43

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Toro E323747

Spring-Compression
(Superseded to 1-323747)

$3.49

$

In Stock, Qty 10

0

45

Toro E323746

Spacer-Flanged
(Superseded to 1-323746)

$1.49

$

In Stock, Qty 20+

0

46

Toro E324372

Pad/Spring ASM
(Superseded to 1-324372)

$68.99

$

Usually ships in 3-6 days

0

47

Toro E303334

Washer-Lock
(Superseded to 1-303334)

$2.99

$

In Stock, only 3 left!

0

48

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Toro E303352

Spindle Washer
(Superseded to 1-303352)

$2.99

$

In Stock, Qty 13

0

50

Toro E323748

Ring-Push On
(Superseded to 1-323748)

$1.99

$

In Stock, Qty 5

0

52

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
