30171 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 200000001 - 200999999) (2000) ENGINE & FUEL SYSTEM ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

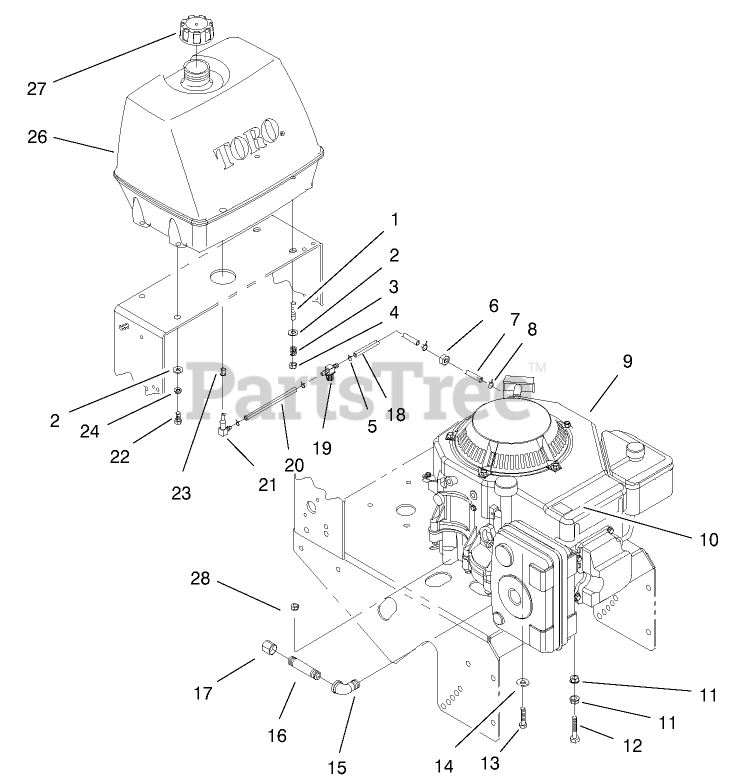

ENGINE & FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro E633023

Stud
(Superseded to 1-633023)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro E633349

Spring-Fuel Tank
(Superseded to 1-633349)

$5.49

$

In Stock, only 2 left!

0

4

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

5

Toro E303077

Clamp
(Superseded to 1-303077)

$1.49

$

In Stock, Qty 8

0

6

Toro E303197

Filter
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

7

Toro E303022

Fuel Line
(Superseded to 1-303022)

$5.49

$

In Stock, only 3 left!

0

8

Toro E303308

Clamp
(Superseded to 1-303308)

$5.49

$

Usually ships in 3-6 days

0

9

Toro E303476

Engine
(Superseded to 1-303476)

$

$

Not available

10

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro E303334

Washer-Lock
(Superseded to 1-303334)

$2.99

$

In Stock, only 4 left!

0

15

Toro E303431

Elbow
(Superseded to 1-303431)

$

$

Not available

16

Toro E323326

Nipple
(Superseded to 1-323326)

$

$

Not available

17

Toro E543233

Cap
(Superseded to 1-543233)

$

$

Not available

18

Toro E303022

Fuel Line
(Superseded to 1-303022)

$5.49

$

In Stock, only 3 left!

0

19

Toro E603770

Valve-Gas
(Superseded to 1-603770)

$8.49

$

In Stock, Qty 7

0

20

Toro E603955

Fuel-Line
(Superseded to 1-603955)

$5.49

$

Usually ships in 3-6 days

0

21

Toro E543277

Elbow
(Superseded to 1-543277)

$11.99

$

In Stock, Qty 5

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

23

Toro E513645

Bushing
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro E323551

Tank
(Superseded to 106-0730)

$

$

Not available

27

Toro E513508

Cap-Fuel Tank
(Superseded to 1-513508)

$27.99

$

In Stock, only 1 left!

0

28

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

Toro E303287

Tie-Plastic
(Superseded to 1-303287)

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0
