30170 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 010000001 - 019999999) (1991) RECOIL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

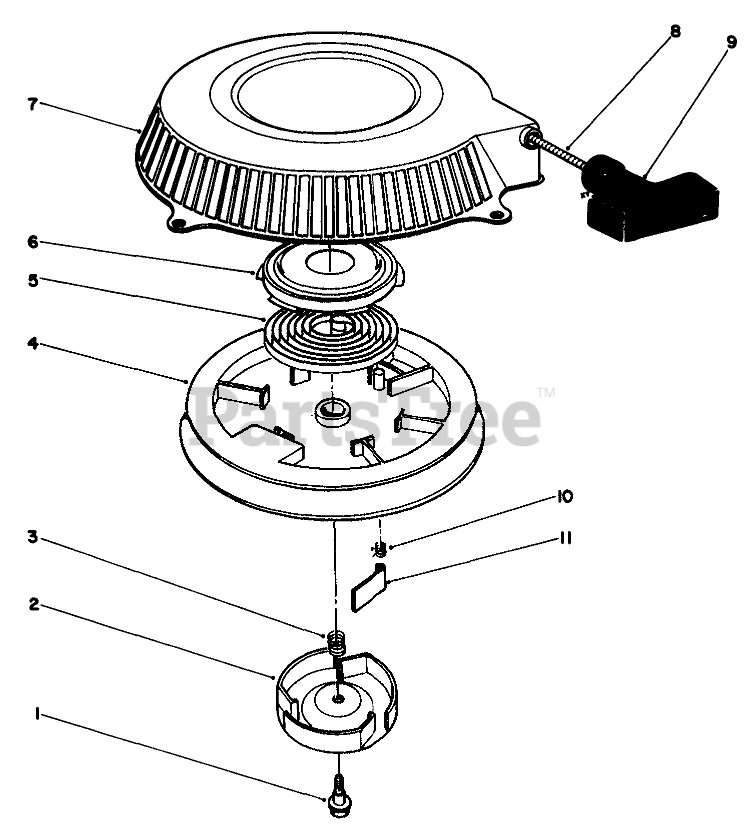

RECOIL ASSEMBLY Parts Diagram

  • Title

1

Kawasaki 314501-3447A

Bolt
(Superseded to 92001-2027)

$2.99

$

In Stock, only 3 left!

0

2

Kawasaki 14020-2054

Retainer

$

$

Not available

3

Toro 92081-2268

Spring

$

$

Currently unavailable

4

Kawasaki 59101-2054

Reel

$

$

Not available

5

Kawasaki 92081-2267

Spring

$34.99

$

Usually ships in 2-5 days

0

6

Kawasaki 32099-2060

Case

$7.99

$

In Stock, only 4 left!

0

7

Toro 32099-2168YK

Case

$

$

Currently unavailable

8

Kawasaki 59106-2060

Rope

$

$

Not available

9

Kawasaki 46075-2059

Grip
(Superseded to 46075-2016)

$7.49

$

Usually ships in 2-5 days

0

10

Kawasaki 314401-3444A

Spring-RETURN
(Superseded to 92081-2021)

$1.99

$

In Stock, Qty 12

0

11

Kawasaki 13165-2073

Pawl
(Superseded to 13165-2057)

$5.49

$

In Stock, only 2 left!

0

Toro 49088-2357-YK

Recoil Starter Assembly

$

$

Currently unavailable
