30170 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 010000001 - 019999999) (1991) ELECTRIC STARTER ALTERNATOR Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

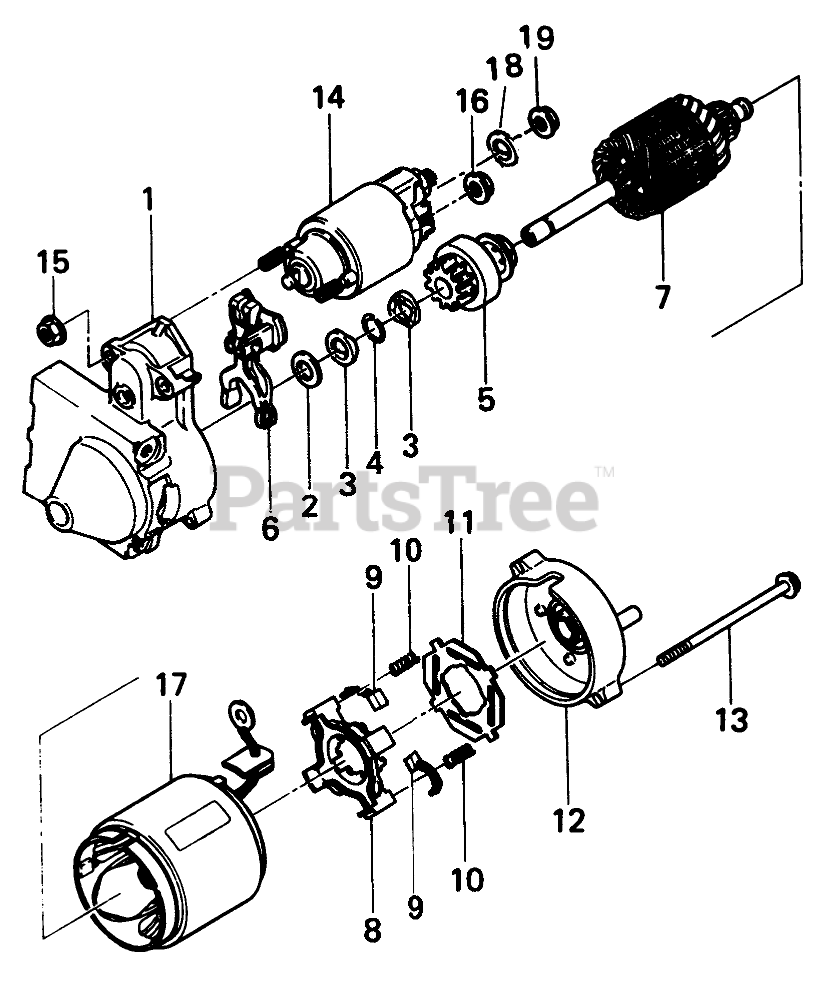

ELECTRIC STARTER ALTERNATOR Parts Diagram

  • Title

1

Toro 16146-2154

Cover-Front

$

$

Currently unavailable

2

Toro 92022-2218

Washer

$

$

Currently unavailable

3

Toro 32085-2066

Stopper

$

$

Currently unavailable

4

Kawasaki 92033-2081

Ring-Snap

$6.99

$

Usually ships in 2-5 days

0

5

Kawasaki 13081-2085

Clutch Asm

$122.99

$

Usually ships in 2-5 days

0

6

Kawasaki 13168-2131

Lever-Shift

$24.99

$

In Stock, only 1 left!

0

7

Kawasaki 21080-2054

Armature

$

$

Not available

8

Kawasaki 13091-2068

Brush Holder
(Superseded to 13280-0873)

$29.99

$

Usually ships in 2-5 days

0

9

Kawasaki 21039-2059

Brush
(Superseded to 21039-0011)

$15.99

$

In Stock, only 1 left!

0

10

Kawasaki 21040-2052

Spring-Brush

$3.99

$

Usually ships in 2-5 days

0

11

Kawasaki 16073-2098

Insulator

$10.99

$

Usually ships in 2-5 days

0

12

Kawasaki 16146-2077

Cover Assy

$83.99

$

In Stock, only 1 left!

0

13

Kawasaki 92002-2277

Bolt
(Superseded to 92154-2116)

$13.99

$

In Stock, Qty 5

0

14

Toro 27010-2122

Switch

$

$

Currently unavailable

15

Kawasaki 92015-2146

Nut

$1.99

$

Usually ships in 2-5 days

0

16

Kawasaki 92015-2147

Nut

$7.49

$

Usually ships in 2-5 days

0

17

Yoke Assembly

$

$

Not available

18

Toro 461F0800

Washer-Spring (8mm)

$

$

Currently unavailable

19

Toro 317B0800

Nut-Hex, Small (8mm)

$

$

Currently unavailable

Toro 21163-2081

Starter-Assembly

$

$

Currently unavailable
