30169 - Toro ProLine Walk-Behind Mower, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) HANDLE AND CONTROL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 17hp

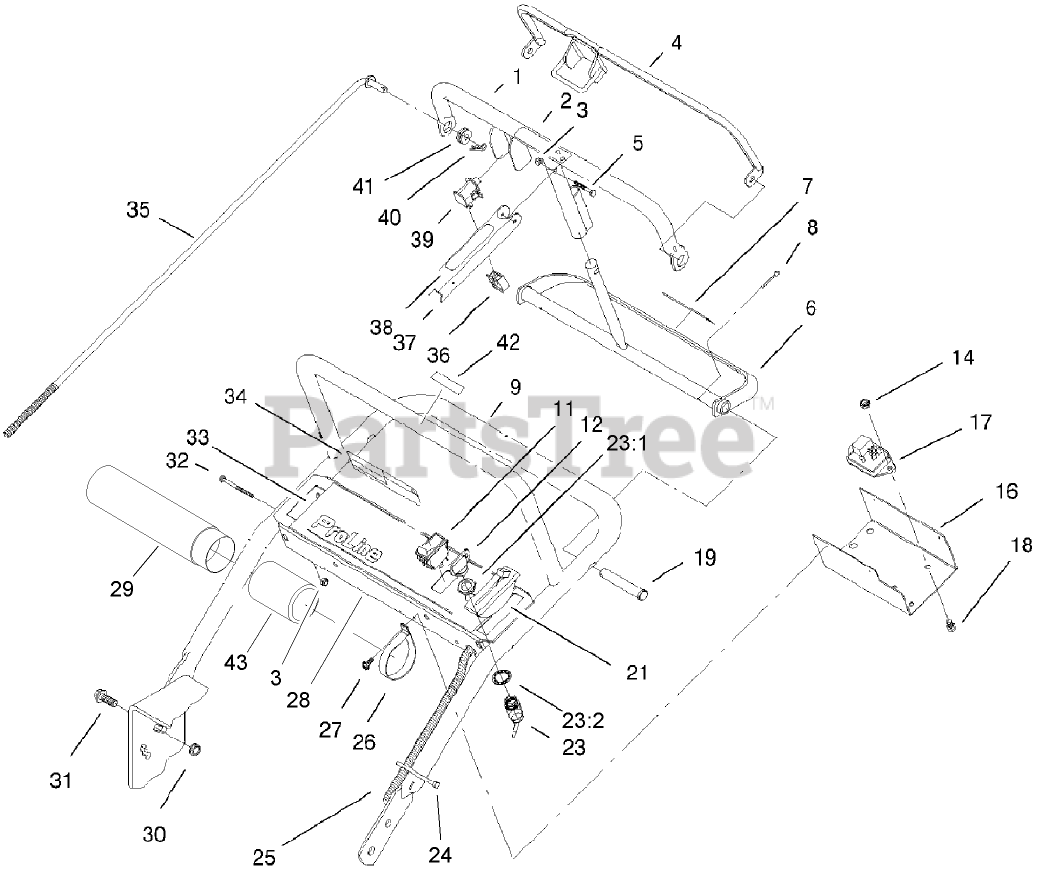

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 82-7690-03

BAR-CONTROL

$281.99

$

Usually ships in 3-6 days

0

2

Toro 82-2290

DECAL

$12.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 82-7680-03

BAIL

$152.99

$

Usually ships in 3-6 days

0

5

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

6

Toro 106-5477-03

PIVOT-CONTROL

$202.99

$

Usually ships in 3-6 days

0

7

Toro 82-2280

DECAL

$10.99

$

In Stock, only 1 left!

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

9

Toro 67-6440-01

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available

11

Toro 104-8140

SWITCH-PTO

$79.99

$

Usually ships in 3-6 days

0

12

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

16

Toro 93-1187-03

PANEL-BOTTOM

$49.99

$

Usually ships in 3-6 days

0

17

Toro 104-8141

MODULE-DELAY

$68.99

$

In Stock, Qty 8

0

18

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

19

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

21

Toro 100-6450

CONTROL-THROTTLE

$135.99

$

Usually ships in 3-6 days

0

23

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

23:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

23:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Toro 104-8137

HARNESS-WIRE
(Superseded to 119-6508)

$270.99

$

Usually ships in 3-6 days

0

26

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 82-2180-03

PANEL-CONTROL

$

$

Not available

29

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

30

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

32

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

33

Toro 106-0685

DECAL-PANEL, CONTROL

$

$

Not available

34

Toro 105-0884

DECAL-DANGER

$17.99

$

Usually ships in 3-6 days

0

35

Toro 82-7631

ROD-CONTROL

$72.99

$

Usually ships in 3-6 days

0

36

Toro 218-595

CONNECTOR-BODY

$

$

Not available

37

Toro 51-4850-03

LEVER-BRAKE, PARKING

$38.99

$

In Stock, only 1 left!

0

38

Toro 52-2010

DECAL-LEVER, PARKING

$5.99

$

Usually ships in 3-6 days

0

39

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

40

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

41

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

42

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

43

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0
