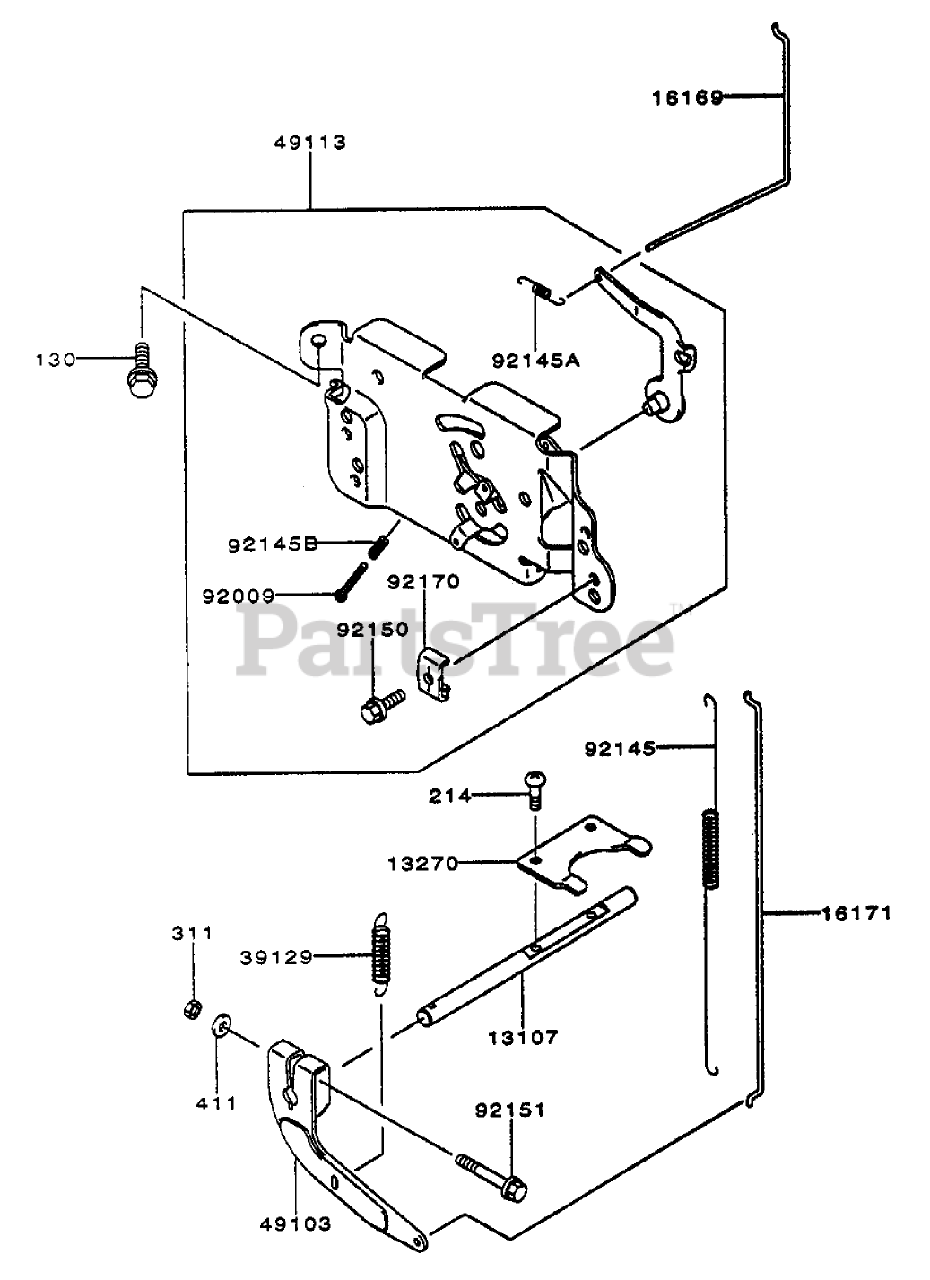

30169 - Toro ProLine Walk-Behind Mower, Gear Drive, 17hp (SN: 220000001 - 220999999) (2002) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS25 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 17hp

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS25 Parts Diagram

  • Title

13107

Kawasaki 13107-7002

Shaft
(Superseded to 99996-6064)

$18.99

$

Usually ships in 2-5 days

0

13270

Toro 13270-7006

Plate

$

$

Currently unavailable

16169

Kawasaki 16169-7001

Link-Choke
(Superseded to 16169-7010)

$2.49

$

In Stock, Qty 10

0

16171

Kawasaki 16171-7001

Link
(Superseded to 16171-0039)

$4.49

$

In Stock, Qty 8

0

39129

Kawasaki 39129-7003

Spring-Governor
(Superseded to 39129-7002)

$4.99

$

In Stock, Qty 20+

0

49103

Toro 49103-7001

Arm-Governor

$

$

Currently unavailable

49113

Toro 49113-7001

Panel-Comp-Control

$

$

Currently unavailable

92009

Kawasaki 92009-7002

Screw, 4x30

$0.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7003

Spring

$2.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7004

Spring
(Superseded to 92145-7032)

$0.99

$

In Stock, Qty 20+

0

92145B

Kawasaki 92145-7005

Spring

$0.99

$

In Stock, Qty 12

0

92150

Kawasaki 92150-2182

BOLT (5X18)

$0.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7006

Bolt, 6x30
(Superseded to 92154-2697)

$0.99

$

In Stock, Qty 9

0

92170

Kawasaki 92170-7001

Clamp

$2.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

$3.99

$

In Stock, Qty 15

0

311

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0
