30168 - Toro ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 200000001 - 200999999) (2000) COOLING-EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS08 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 15hp

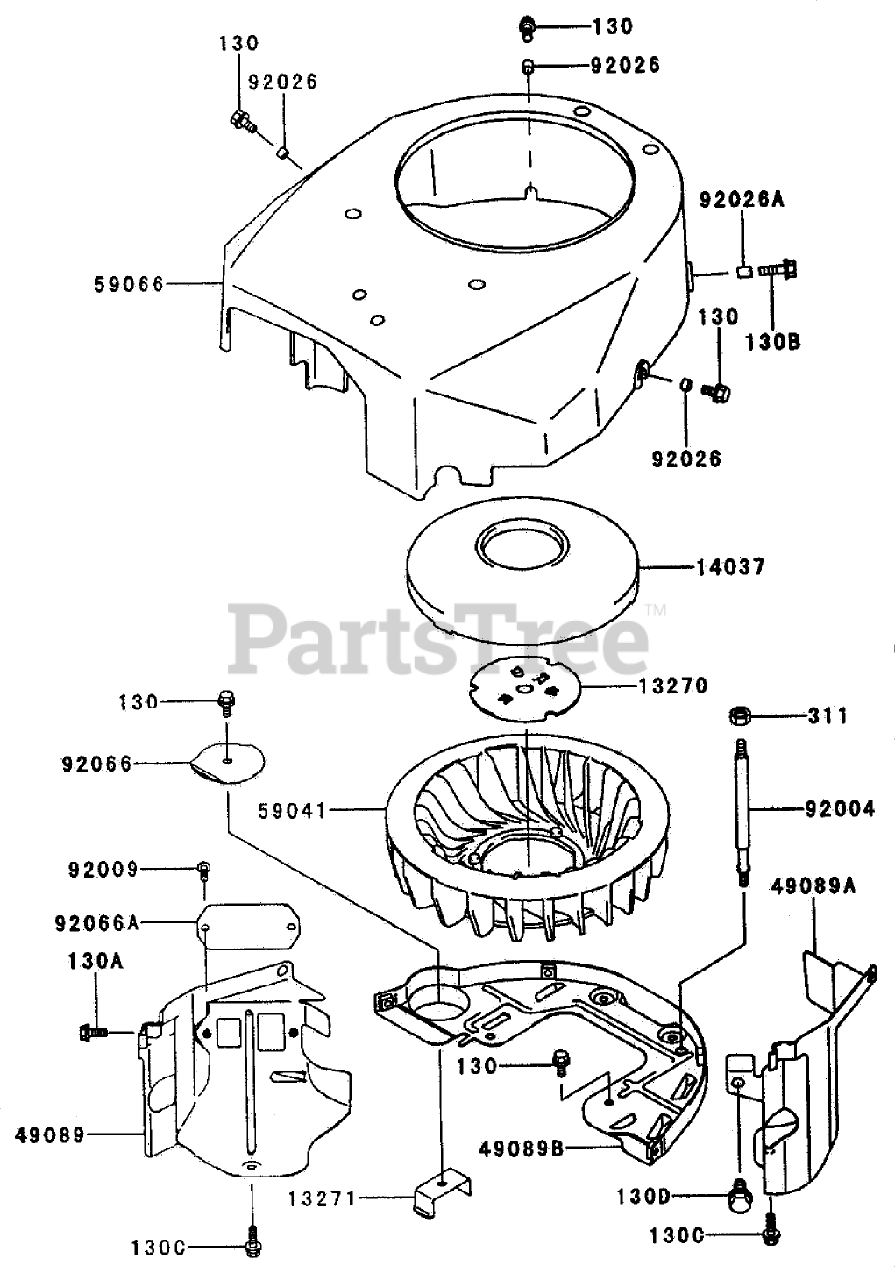

COOLING-EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS08 Parts Diagram

  • Title

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 20+

0

130D

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

13270

Kawasaki 13270-7007

Plate

$5.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7002

Plate

$2.99

$

In Stock, only 1 left!

0

14037

Toro 14037-7006-9H

Screen

$

$

Currently unavailable

311

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

49089

Kawasaki 49089-7001

Shroud-Engine
(Superseded to 49089-7034)

$26.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7002

Shroud-Engine

$28.99

$

In Stock, only 1 left!

0

49089B

Kawasaki 49089-7003

Shroud-Engine
(Superseded to 49089-7032)

$32.99

$

In Stock, only 1 left!

0

59041

Toro 59041-7001

Fan

$

$

Currently unavailable

59066

Kawasaki 59066-7002

Housing-Fan

$

$

Not available

92004

Kawasaki 92004-7006

Stud
(Superseded to 92004-7025)

$6.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

Screw

$0.99

$

In Stock, Qty 10

0

92026

Kawasaki 92026-7001

SPACER (6.2X7.9X5)
(Superseded to 92153-7007)

$4.49

$

In Stock, Qty 20+

0

92026A

Toro 92026-7003

Spacer

$

$

Currently unavailable

92066

Kawasaki 92066-7004

Plug

$7.99

$

Usually ships in 2-5 days

0

92066A

Kawasaki 92066-7005

Plug

$3.99

$

Usually ships in 2-5 days

0
