30167 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 220000001 - 220999999) (2002) HANDLE & CONTROL PANEL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

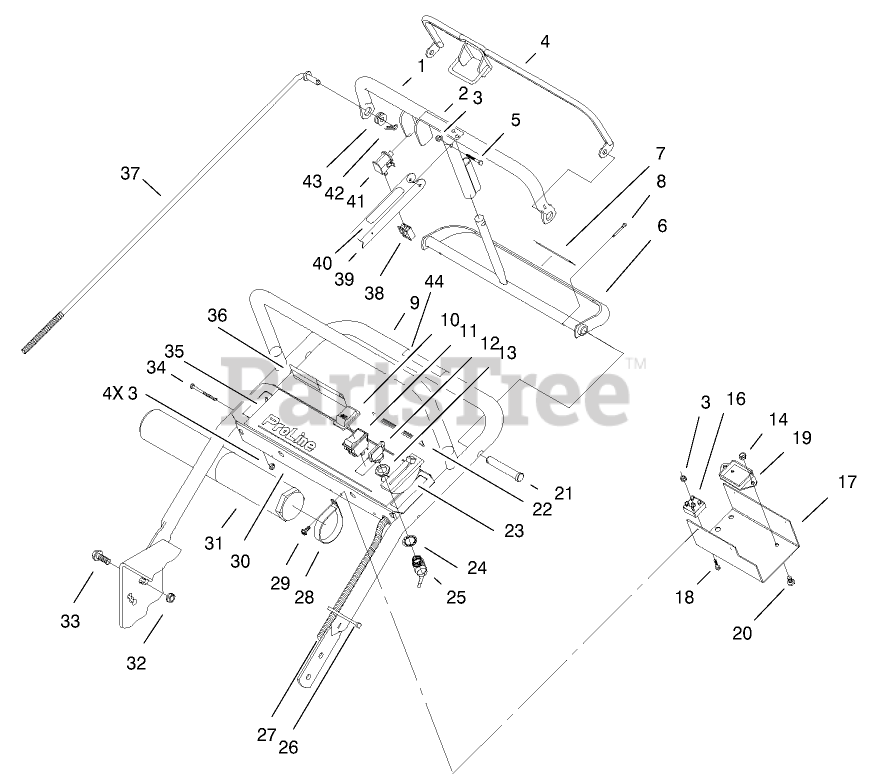

HANDLE & CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 82-7690-03

BAR-CONTROL

$281.99

$

Usually ships in 3-6 days

0

2

Toro 82-2290

DECAL

$12.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 82-7680-03

BAIL

$152.99

$

Usually ships in 3-6 days

0

5

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

6

Toro 99-8501-03

CONTROL-PIVOT
(Superseded to 106-5477-03)

$202.99

$

Usually ships in 3-6 days

0

7

Toro 82-2280

DECAL

$10.99

$

In Stock, only 1 left!

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

9

Toro 67-6440-01

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available

10

Toro 82-3820

BOOT-SWITCH

$

$

Not available

11

Toro 82-2300

SWITCH
(Superseded to 121-8032)

$55.99

$

In Stock, only 3 left!

0

12

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

13

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

16

Toro 37-7600

RECTIFIER-BRIDGE

$27.99

$

In Stock, only 1 left!

0

17

Toro 93-1187-03

PANEL-BOTTOM

$49.99

$

Usually ships in 3-6 days

0

18

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

19

Toro 100-6170

MODULE-DELAY

$61.99

$

Usually ships in 3-6 days

0

20

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

21

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

22

Toro 65-3090

DECAL-INSTRUCTION

$

$

Not available

23

Toro 74-0740

CONTROL-THROTTLE

$107.99

$

Usually ships in 3-6 days

0

24

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

25

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 100-6459

Harness-Wire,Recoil

$

$

Not available

28

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

29

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro 82-2180-03

PANEL-CONTROL

$

$

Not available

31

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

32

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

34

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

35

Toro 82-7730

DECAL-CONTROL PANEL

$

$

Not available

36

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

37

Toro 82-7631

ROD-CONTROL

$72.99

$

Usually ships in 3-6 days

0

38

Toro 218-595

CONNECTOR-BODY

$

$

Not available

39

Toro 51-4850-03

LEVER-BRAKE, PARKING

$38.99

$

In Stock, only 1 left!

0

40

Toro 52-2010

DECAL-LEVER, PARKING

$5.99

$

Usually ships in 3-6 days

0

41

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

42

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

43

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

44

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8
