30167 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 220000001 - 220999999) (2002) CRANKCASE Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

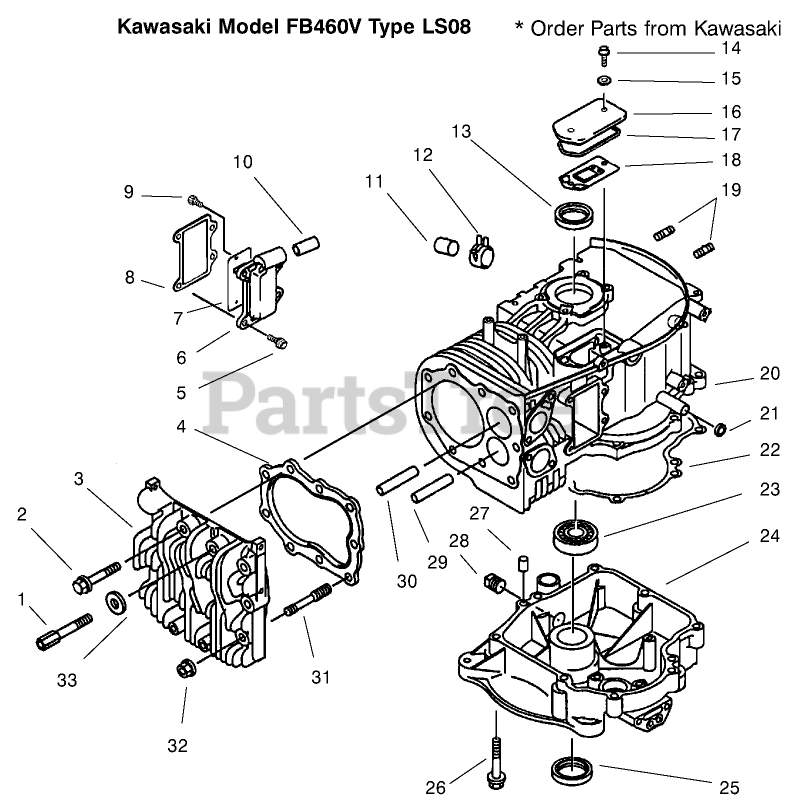

CRANKCASE Parts Diagram

  • Title

$

$

Not available

2

Kawasaki 130G1055

Bolt
(Superseded to 130BA1055)

$

$

Not available

3

Kawasaki 11001-2151

Head-Cylinder
(Superseded to 11001-2102)

$

$

Not available

4

Kawasaki 11004-2091

Gasket-Head
(Superseded to 11004-2079)

$16.99

$

In Stock, only 4 left!

0

5

Toro 130G0616

Bolt-Flanged (6X16)

$

$

Currently unavailable

6

Toro 49108-2011

Cover-Valve Chamber

$

$

Currently unavailable

7

$

$

Currently unavailable

8

$

$

Currently unavailable

$0.99

$

In Stock, only 1 left!

0

$

$

Not available

$1.99

$

In Stock, only 2 left!

0

$

$

Not available

13

$8.99

$

In Stock, Qty 10

0

14

Kawasaki 92002-2087

Bolt
(Superseded to 315501-5381A)

$0.99

$

In Stock, only 4 left!

0

15

Kawasaki 11060-2323

Gasket
(Superseded to 11009-2205)

$0.99

$

In Stock, Qty 10

0

$

$

Not available

17

$

$

Currently unavailable

18

$

$

Not available

$1.99

$

Usually ships in 2-5 days

0

20

Toro 49120-6108

Crankcase-Complete

$

$

Currently unavailable

21

Kawasaki 92049-2097

SEAL-OIL (VC6X10X2.6)

$2.49

$

In Stock, Qty 20+

0

22

Toro 11060-2015

Gasket-Crankcase

$

$

Currently unavailable

23

Kawasaki 601A6207

Ball Bearing

$21.99

$

In Stock, only 1 left!

0

24

Toro 49015-6176

Cover-Crankcase

$

$

Currently unavailable

25

$6.99

$

In Stock, Qty 8

0

26

Kawasaki 130G0845

Bolt-Flanged (8X45)
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

$0.99

$

In Stock, Qty 20+

0

$3.49

$

In Stock, Qty 10

0

29

Toro 49002-2071

Guide-Exhaust Valve

$

$

Currently unavailable

30

Kawasaki 49002-2070

Guide-Intake Valve
(Superseded to 49002-2012)

$

$

Not available

31

$

$

Currently unavailable

$

$

Currently unavailable

33

Toro 410B1000

Washer

$

$

Currently unavailable
