30167 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 099000001 - 099999999) (1999) LUBRICATION EQUIPMENT KAWASAKI MODEL FB460V TYPE KS08 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

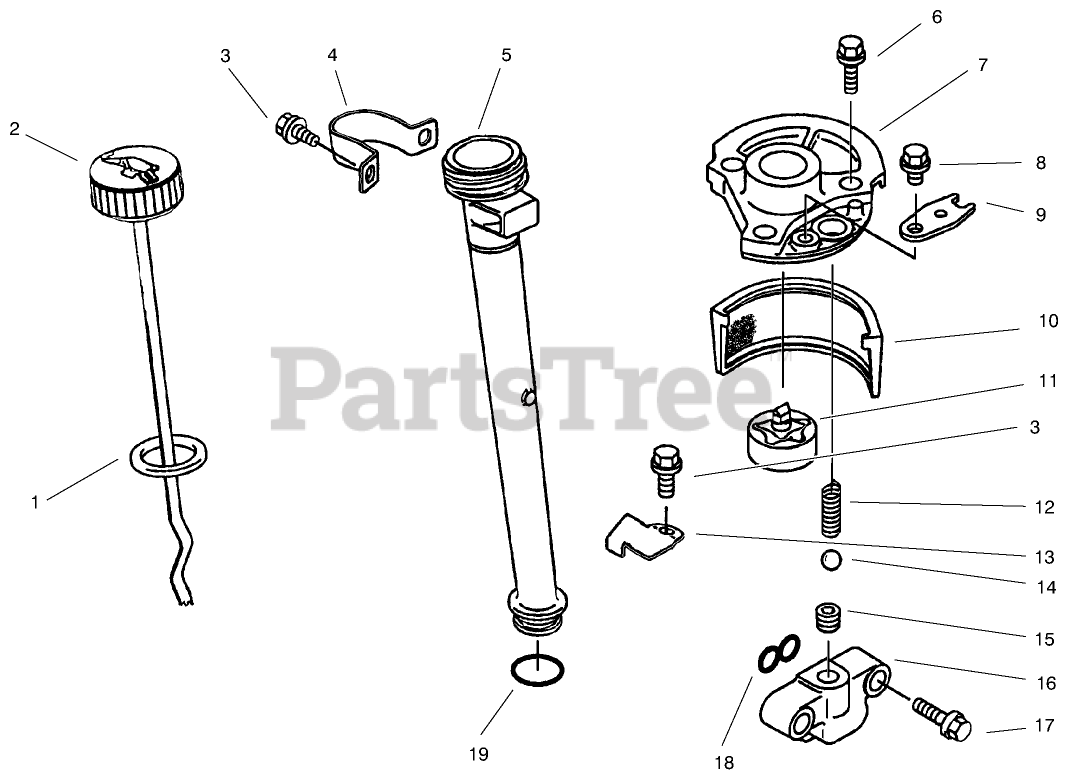

LUBRICATION EQUIPMENT KAWASAKI MODEL FB460V TYPE KS08 Parts Diagram

  • Title
1

Kawasaki 11009-2346

Gasket
(Superseded to M88482)

Note: Order Parts from Kawasaki

$2.49

$

In Stock, Qty 6

0

2

Kawasaki 52005-2058

Gauge

Note: Order Parts from Kawasaki

$

$

Not available

3

Kawasaki 130B0508

Bolt
(Superseded to 130AA0508)

Note: Order Parts from Kawasaki

$0.99

$

In Stock, Qty 8

0

4

Toro 92170-2014-9H

Clamp

Note: Order Parts from Kawasaki

$

$

Currently unavailable

5

Kawasaki 59231-2059

Filler

Note: Order Parts from Kawasaki

$

$

Not available

6

Toro 130b0825

Bolt-Flange

Note: Order Parts from Kawasaki

$

$

Currently unavailable

7

Toro 16142-6001

Cover-Pump

Note: Order Parts from Kawasaki

$

$

Currently unavailable

8

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

Note: Order Parts from Kawasaki

$0.99

$

In Stock, Qty 20+

0

9

Kawasaki 13270-2054

Plate
(Superseded to 13169-2360)

Note: Order Parts from Kawasaki

$0.99

$

Usually ships in 2-5 days

0

10

Kawasaki 49065-2056

Filter-Oil

Note: Order Parts from Kawasaki

$

$

Not available

11

Toro 16082-2057

Pump ASM-Oil

Note: Order Parts from Kawasaki

$

$

Currently unavailable

12

Kawasaki 92081-2216

Spring

Note: Order Parts from Kawasaki

$0.99

$

Usually ships in 2-5 days

0

13

Kawasaki 13169-2359

Plate

Note: Order Parts from Kawasaki

$

$

Not available

14

Kawasaki 600A1000

Ball

Note: Order Parts from Kawasaki

$0.99

$

In Stock, Qty 7

0

15

Kawasaki 92066-2211

Plug

Note: Order Parts from Kawasaki

$2.99

$

Usually ships in 2-5 days

0

16

Kawasaki 14025-2145

Cover

Note: Order Parts from Kawasaki

$13.99

$

Usually ships in 2-5 days

0

17

Kawasaki 130B0830

Bolt
(Superseded to 130AA0830)

Note: Order Parts from Kawasaki

$0.99

$

In Stock, only 1 left!

0

18

Kawasaki 92055-2063

Seal

Note: Order Parts from Kawasaki

$4.49

$

In Stock, Qty 10

0

19

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Order Parts from Kawasaki

$1.99

$

In Stock, Qty 20+

0
