30167 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 089000001 - 089999999) (1998) TRANSMISSION AND IDLER PULLEY ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

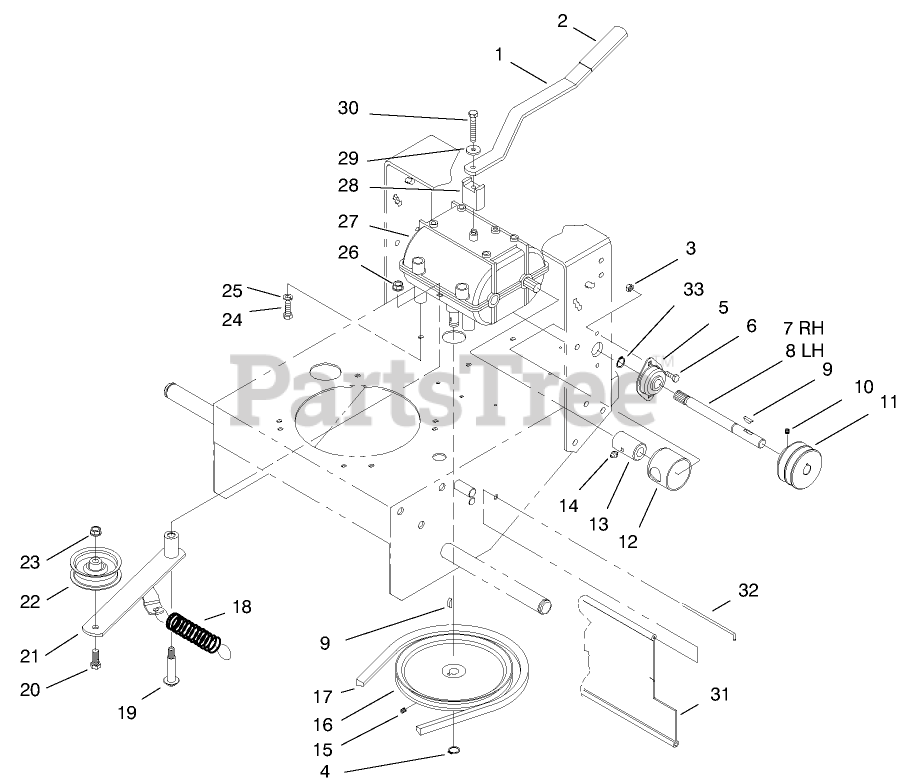

TRANSMISSION AND IDLER PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 74-0320

Lever-Shift
(Superseded to 74-0320-01)

$48.99

$

Usually ships in 3-6 days

0

2

$15.99

$

Usually ships in 3-6 days

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

4

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

5

Toro 51-4270

BEARING-EXTERNAL SHAFT

$50.99

$

In Stock, only 4 left!

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 98-0788

SHAFT-EXTENSION, RH

$76.99

$

In Stock, only 3 left!

0

8

Toro 98-0787

SHAFT-EXTENSION, LH

$76.99

$

In Stock, only 3 left!

0

9

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

10

Toro 3245-3

SCREW-SET, HS

$3.49

$

In Stock, only 4 left!

0

11

Toro 74-0480

Pulley-Drive
(Superseded to 105-2698)

$55.99

$

In Stock, only 3 left!

0

12

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!

0

13

Toro 98-0789

COUPLER
(Superseded to 1-323680)

$41.99

$

In Stock, only 2 left!

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

16

Toro 51-4190

PULLEY-DRIVEN

$90.99

$

In Stock, only 3 left!

0

17

Toro 26-9671

BELT V

$40.99

$

In Stock, only 2 left!

0

18

Toro 68-2190

SPRING

$74.99

$

In Stock, only 1 left!

0

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 82-4800

Lever-Idler
(Superseded to 16-7509)

$186.99

$

Usually ships in 3-6 days

0

22

Toro 62-4540-03

Pulley-Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 1 left!

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

24

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

27

Toro 98-0791

TRANSMISSION

$

$

Not available

28

Toro 72-2190

MOUNT-LEVER, SHIFT

$29.99

$

Usually ships in 3-6 days

0

29

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

30

Toro 329-10

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

31

Toro 95-1526

SHIELD-TRAILING

$80.99

$

Usually ships in 3-6 days

0

32

Toro 95-1529

ROD-SHIELD

$5.49

$

Usually ships in 3-6 days

0

33

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 19

0
