30167 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 079000001 - 079999999) (1997) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

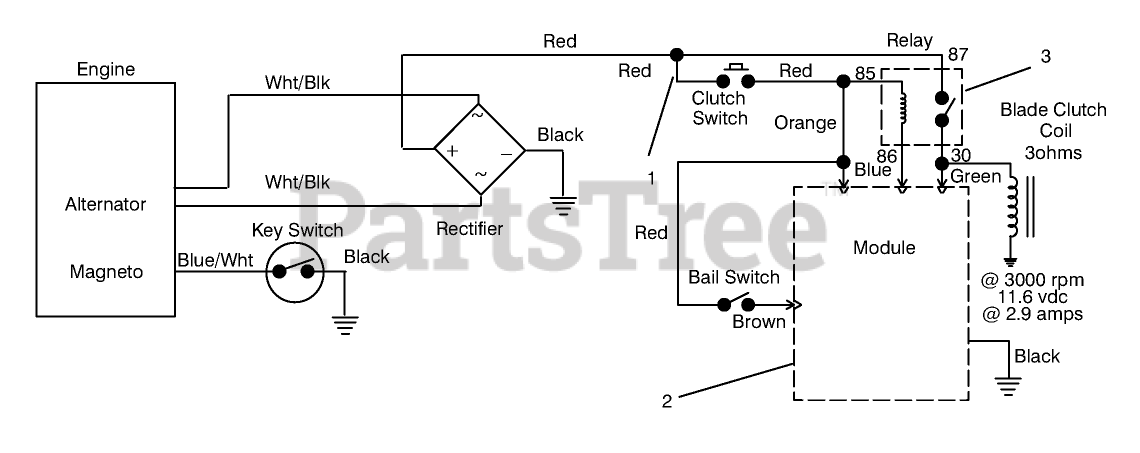

ELECTRIC SCHEMATIC Parts Diagram

  • Title

1

Toro 95-2804

WIRE HARNES - KAWASAKI

$

$

Not available

2

Toro 94-9666

MODULE
(Superseded to 107-4113)

$

$

Not available

3

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0
