30167 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 069005001 - 699999999) (1996) ENGINE ASM Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

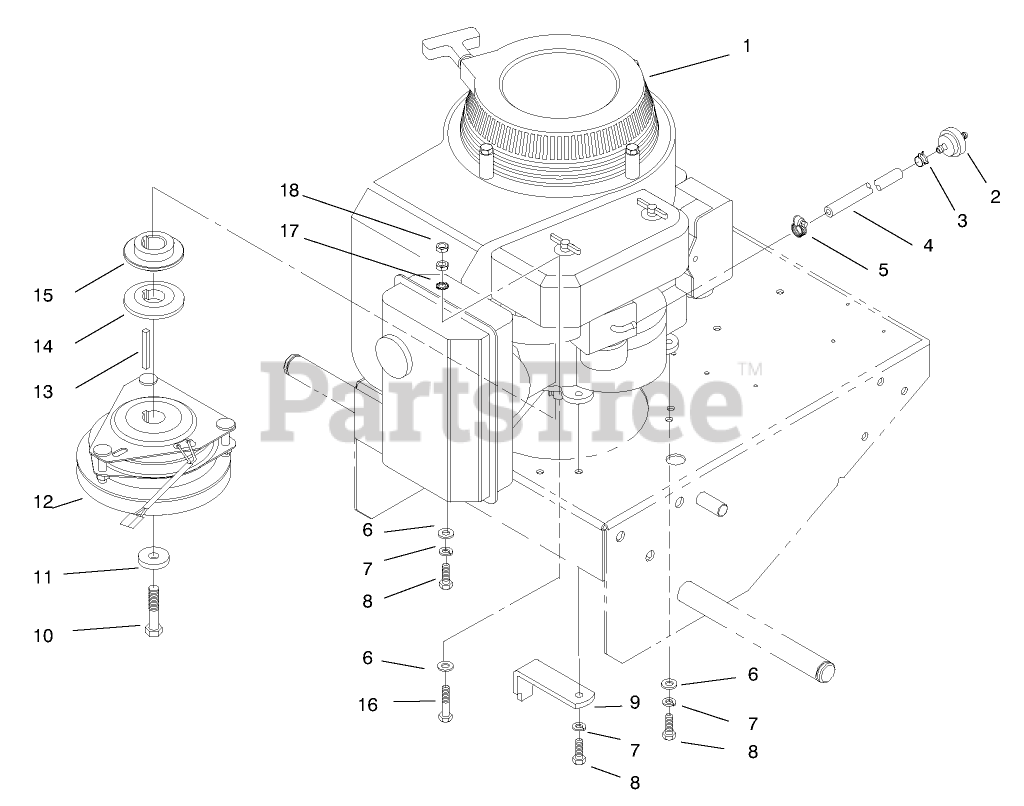

ENGINE ASM Parts Diagram

  • Title

1

Engine-12 Hp Kawasaki

$

$

Not available

2

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 11

0

3

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

4

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$10.99

$

In Stock, only 1 left!

0

5

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 57-6380

SCREW-HH
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 19

0

9

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$23.99

$

In Stock, only 4 left!

0

10

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

11

Toro 112843

WASHER

$3.99

$

In Stock, Qty 11

0

12

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$611.99

$

In Stock, only 1 left!

0

13

Toro 92-5436

KEY

$

$

Not available

14

Toro 74-0050

SHEAVE-LOWER HALF

$23.99

$

Usually ships in 3-6 days

0

15

Toro 74-0060

SHEAVE-UPPER HALF

$23.99

$

Usually ships in 3-6 days

0

16

Toro 57-6370

SCREW (ENGINE, GROUND)

$

$

Not available

17

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

18

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0
