30167 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 069005001 - 699999999) (1996) BRAKE, WHEEL PULLEY AND WHEEL ASM Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

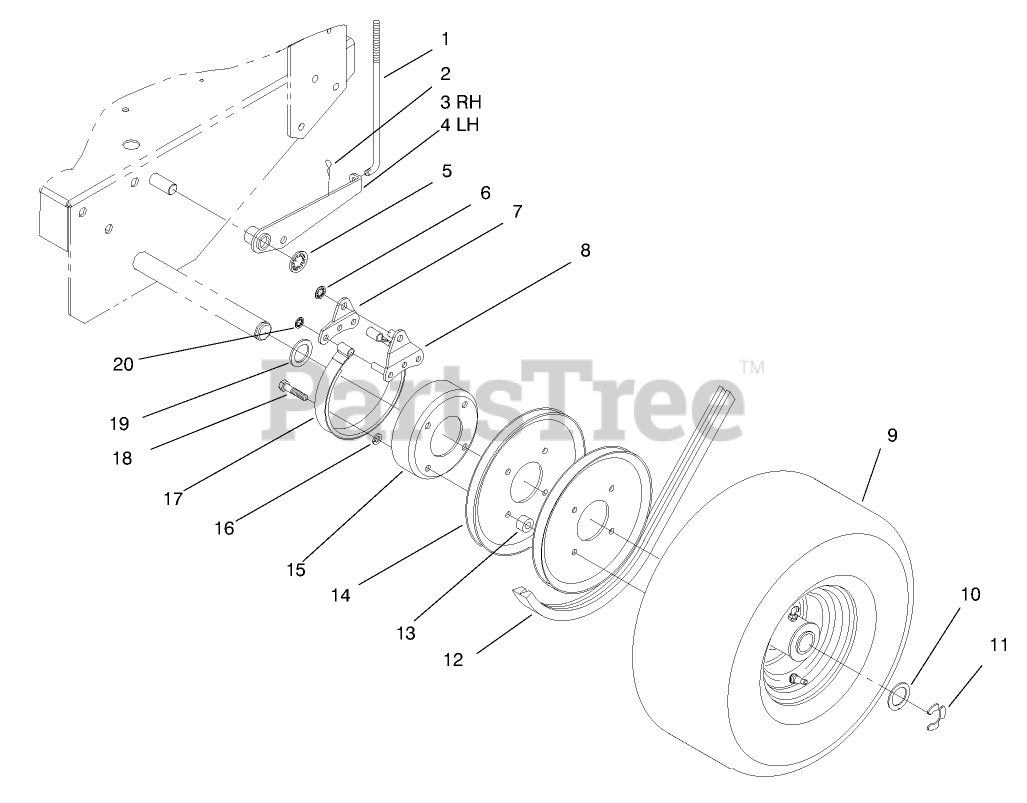

BRAKE, WHEEL PULLEY AND WHEEL ASM Parts Diagram

  • Title

1

Toro 51-4580

ROD-BRAKE

$63.99

$

Usually ships in 3-6 days

0

2

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

3

Toro 51-4600

Brake Arm-RH
(Superseded to 106-5537-01)

$146.99

$

Usually ships in 3-6 days

0

4

Toro 51-4610

Brake Arm-LH
(Superseded to 106-5537-01)

$146.99

$

Usually ships in 3-6 days

0

5

Toro 32151-40

RING-RETAINING

$7.99

$

In Stock, Qty 5

0

6

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.49

$

In Stock, only 4 left!

0

7

Toro 51-4660

Plate-Link
(Superseded to 51-4660-01)

$38.99

$

Usually ships in 3-6 days

0

8

Toro 51-4650

LINK-Brake
(Superseded to 51-4650-01)

$

$

Not available

9

ASM-Wheel & Tire

$

$

Not available

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 10

0

11

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 16

0

12

Toro 51-4290

V-BELT

$100.99

$

In Stock, Qty 7

0

13

Toro 51-4170

SPACER-PULLEY

$

$

Not available

14

Toro 51-4160

Pulley-Wheel
(Superseded to 51-4160-03)

$68.99

$

In Stock, only 2 left!

0

15

Toro 51-4180

Drum-Brake
(Superseded to 51-4180-03)

$78.99

$

Usually ships in 3-6 days

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 51-4700

BAND-BRAKE

$74.99

$

In Stock, Qty 10

0

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 51-4230

WASHER-WHEEL

$14.99

$

In Stock, only 1 left!

0

20

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0
