30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) ENGINE & CLUTCH ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

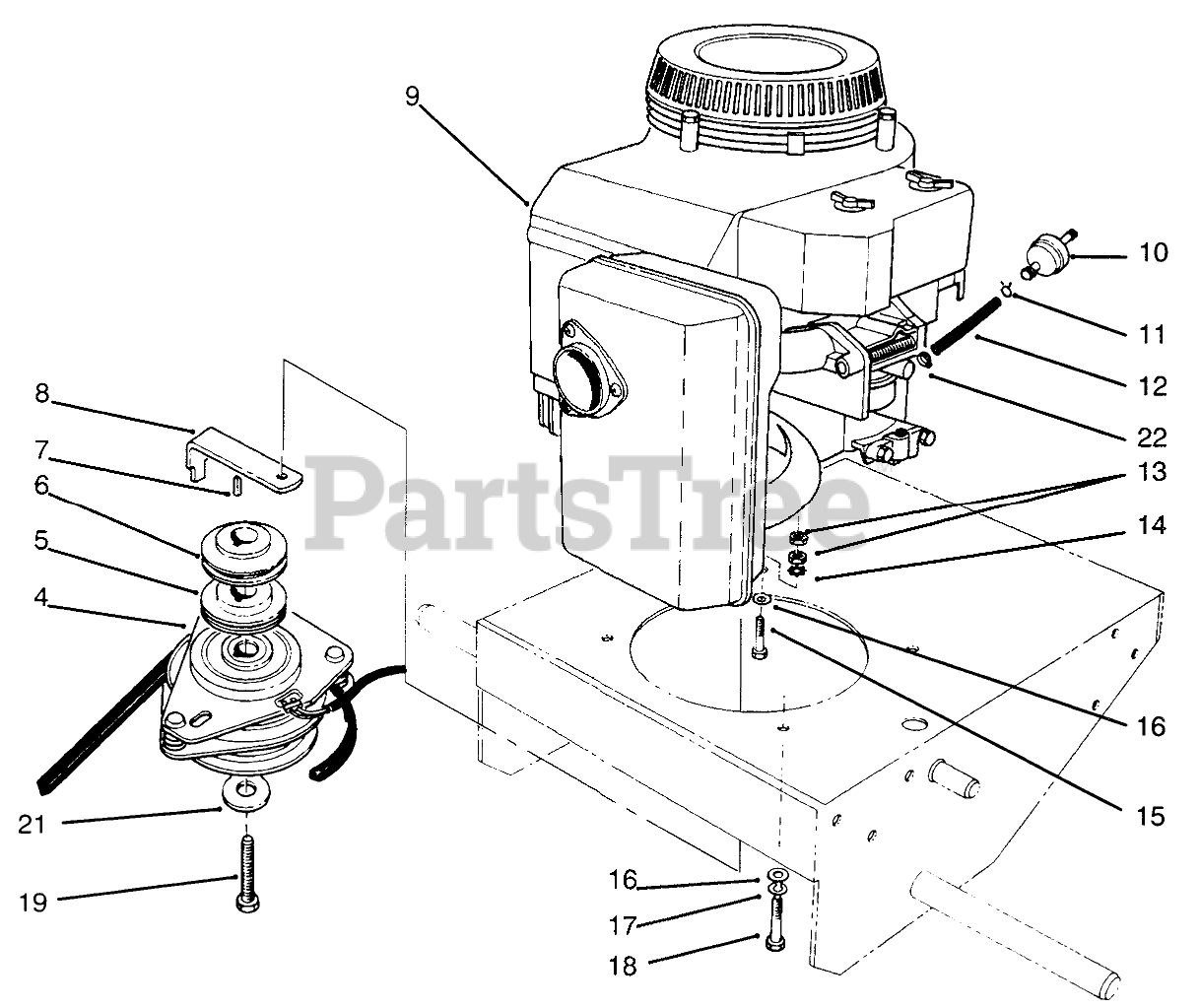

ENGINE & CLUTCH ASSEMBLY Parts Diagram

  • Title

4

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

5

Toro 74-0050

SHEAVE-LOWER HALF

$21.99

$

Usually ships in 3-6 days

0

6

Toro 74-0060

SHEAVE-UPPER HALF

$21.99

$

Usually ships in 3-6 days

0

7

Toro 92-5436

KEY

$

$

Not available

8

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 3 left!

0

9

Engine-Kawasaki Model FB460V Type DS08 Used On Serial Nos.590001-590900 Engine-Kawasaki Model FB460V Type JS08 Used On Serial Nos.590901 & UP

$

$

Not available

10

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

11

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

13

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

15

Toro 57-6370

SCREW (ENGINE, GROUND)

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 57-6380

SCREW-HH
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

19

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

21

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

22

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0
