30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) AIR CLEANER ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

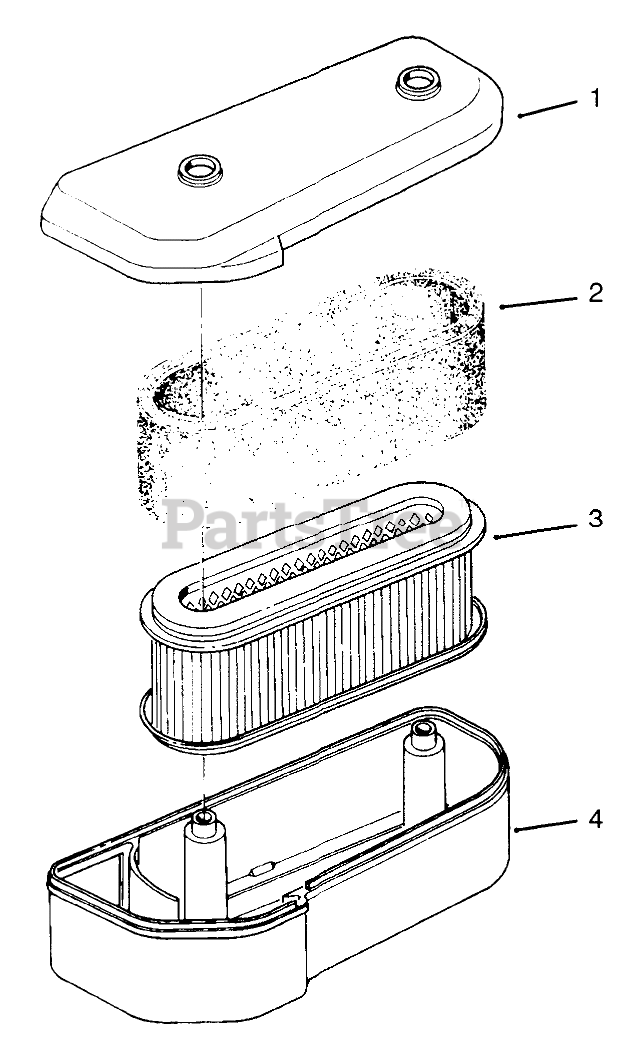

AIR CLEANER ASSEMBLY Parts Diagram

  • Title
1

Kawasaki 11012-2192

CAP-Air Filter

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

2

Kawasaki 11013-2020

Element

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$3.99

$

In Stock, Qty 12

0

3

Kawasaki 11013-2021

Element

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$20.99

$

In Stock, Qty 11

0

4

Toro 11011-2174

CASE-Air Filter

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

Toro 11010-2291

Filter ASM

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

Toro 11010-2291

Filter ASM

Note: Not illustrated

$

$

Currently unavailable
