30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 230000001 - 230999999) (2003) AIR FILTER ASSEMBLY-KAWASAKI MODEL FB460V-LS08 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

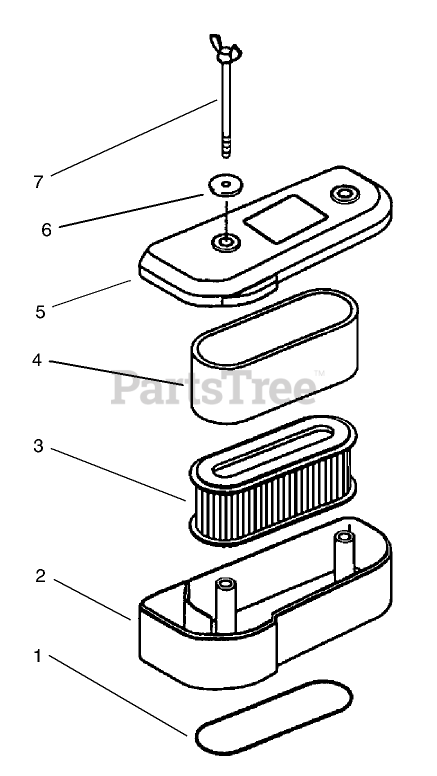

AIR FILTER ASSEMBLY-KAWASAKI MODEL FB460V-LS08 Parts Diagram

  • Title
1

Kawasaki 11009-2443

Gasket
(Superseded to 11009-2340)

Note: Order Parts from Kawasaki

$2.99

$

In Stock, only 1 left!

0

2

Toro 11011-2174

CASE-Air Filter

Note: Order Parts from Kawasaki

$

$

Currently unavailable

3

Kawasaki 11013-2021

Element

Note: Order Parts from Kawasaki

$20.99

$

In Stock, Qty 11

0

4

Kawasaki 11013-2020

Element

Note: Order Parts from Kawasaki

$3.99

$

In Stock, Qty 12

0

5

Kawasaki 11012-2192

CAP-Air Filter

Note: Order Parts from Kawasaki

$

$

Not available

6

Kawasaki 92022-2220

Washer
(Superseded to 92200-0423)

Note: Order Parts from Kawasaki

$

$

Not available

7

Kawasaki 92002-2230

Bolt

Note: Order Parts from Kawasaki

$3.99

$

In Stock, only 2 left!

0

Toro 11010-2291

Filter ASM

Note: Order Parts from Kawasaki

$

$

Currently unavailable
