30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 220000001 - 220999999) (2002) ENGINE, CLUTCH AND MUFFLER GUARD ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

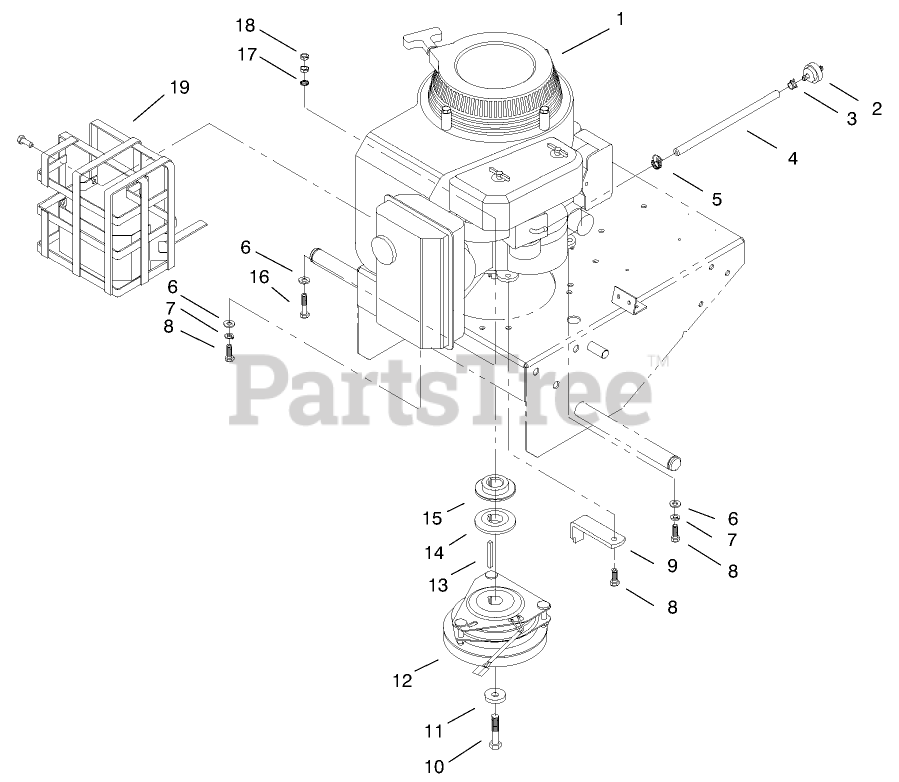

ENGINE, CLUTCH AND MUFFLER GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 100-6466

ENGINE-12.5 KAWASAKI

$

$

Not available

2

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

5

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

9

Toro 51-4540-03

RETAINER-CLUTCH

$21.99

$

In Stock, only 1 left!

0

10

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

11

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

12

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

13

Toro 92-5436

KEY

$

$

Not available

14

Toro 74-0050

SHEAVE-LOWER HALF

$21.99

$

Usually ships in 3-6 days

0

15

Toro 74-0060

SHEAVE-UPPER HALF

$21.99

$

Usually ships in 3-6 days

0

16

Toro 57-6370

SCREW (ENGINE, GROUND)

$

$

Not available

17

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

18

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

19

Toro 105-0857-03

MUFFLER GUARD ASM

$

$

Not available
