30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210999999) (2001) CRANKCASE Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

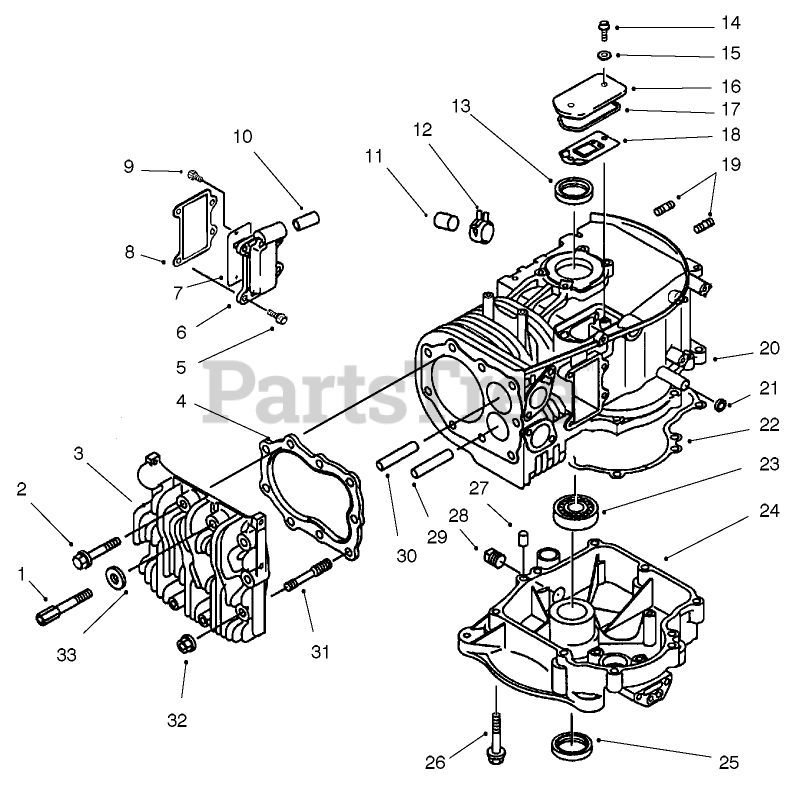

CRANKCASE Parts Diagram

  • Title

1

Kawasaki 92002-2258

Bolt

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Not available

2

Kawasaki 130G1055

Bolt
(Superseded to 130BA1055)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Not available

3

Kawasaki 11001-2151

Head-Cylinder
(Superseded to 11001-2102)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Not available

4

Kawasaki 11004-2091

Gasket-Head
(Superseded to 11004-2079)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$16.99

$

In Stock, only 4 left!

0

5

Toro 130G0616

Bolt-Flanged (6X16)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

6

Toro 49108-2011

Cover-Valve Chamber

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

7

Toro 14025-2143

Cover

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

8

Toro 11060-2059

Gasket

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

9

Kawasaki 92009-2307

Screw

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$0.99

$

In Stock, only 1 left!

0

10

Kawasaki 92059-2142

Tube

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Not available

11

Kawasaki 92066-2096

Plug

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$1.99

$

In Stock, only 2 left!

0

12

Kawasaki 92170-2088

Clamp

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Not available

13

Kawasaki 92049-2096

Oil Seal

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$8.99

$

In Stock, Qty 10

0

14

Kawasaki 92002-2087

Bolt
(Superseded to 315501-5381A)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$0.99

$

In Stock, only 4 left!

0

15

Kawasaki 11060-2323

Gasket
(Superseded to 11009-2205)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$0.99

$

In Stock, Qty 10

0

16

Kawasaki 14025-2040

Cover

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Not available

17

Toro 11009-2339

Gasket

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

18

Kawasaki 14069-2062

Breather

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Not available

19

Kawasaki 92004-2083

Stud

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$1.99

$

Usually ships in 2-5 days

0

20

Toro 49120-6108

Crankcase-Complete

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

21

Kawasaki 92049-2097

SEAL-OIL (VC6X10X2.6)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$2.49

$

In Stock, Qty 20+

0

22

Toro 11060-2015

Gasket-Crankcase

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

23

Kawasaki 601A6207

Ball Bearing

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$21.99

$

In Stock, only 1 left!

0

24

Toro 49015-6176

Cover-Crankcase

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

25

Kawasaki 92049-2227

Seal-Oil

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$6.99

$

In Stock, Qty 9

0

26

Kawasaki 130G0845

Bolt-Flanged (8X45)
(Superseded to 130BA0845)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$1.99

$

In Stock, Qty 13

0

27

Kawasaki 92043-1263

Pin

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$0.99

$

In Stock, Qty 20+

0

28

Kawasaki 92066-2097

Plug

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$3.49

$

In Stock, Qty 11

0

29

Toro 49002-2071

Guide-Exhaust Valve

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

30

Kawasaki 49002-2070

Guide-Intake Valve
(Superseded to 49002-2012)

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Not available

31

Toro 92004-2082

Stud

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

32

Toro 92015-2115

Nut

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable

33

Toro 410B1000

Washer

Note: Engine Kawasaki Model FB460V Type LS08. Obtain Parts from Kawasaki.

$

$

Currently unavailable
