30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

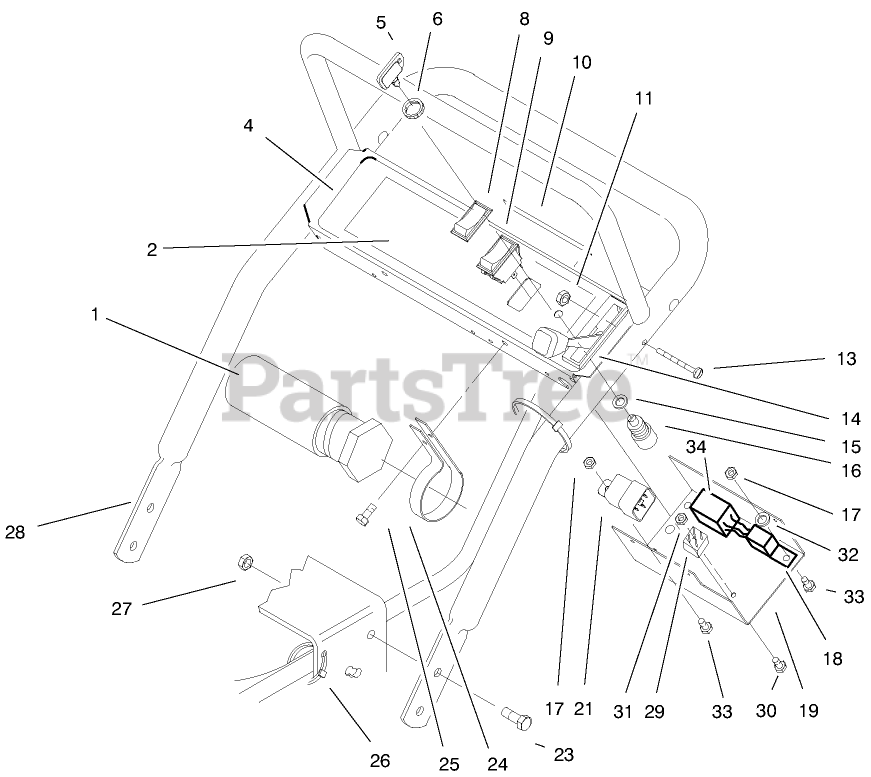

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

2

Toro 93-7295

DECAL - PANEL

$

$

Not available

4

Toro 82-2180

Panel-Control
(Superseded to 82-2180-03)

$

$

Not available

5

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

6

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

8

Toro 82-3820

BOOT-SWITCH

$

$

Not available

9

Toro 82-2300

Switch-Clutch (Incl. Ref.#8)
(Superseded to 121-8032)

$55.99

$

In Stock, Qty 5

0

10

Toro 93-6657

DECAL-DANGER

$

$

Not available

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

14

Toro 74-0740

CONTROL-THROTTLE

$107.99

$

Usually ships in 3-6 days

0

15

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

16

Toro 29-5560

Switch-Ignition (Incl. Ref. #5,6, & 15)

$17.99

$

In Stock, Qty 11

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available

19

Toro 57-5811

Panel-Bottom
(Superseded to 93-1187-03)

$49.99

$

Usually ships in 3-6 days

0

21

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

23

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

24

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

25

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 67-6440

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available

29

Toro 37-7600

RECTIFIER-BRIDGE

$27.99

$

In Stock, only 1 left!

0

30

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

31

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

33

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

34

Toro 94-5818

MODULE

$

$

Not available
