30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 079000001 - 079999999) (1997) MUFFLER Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

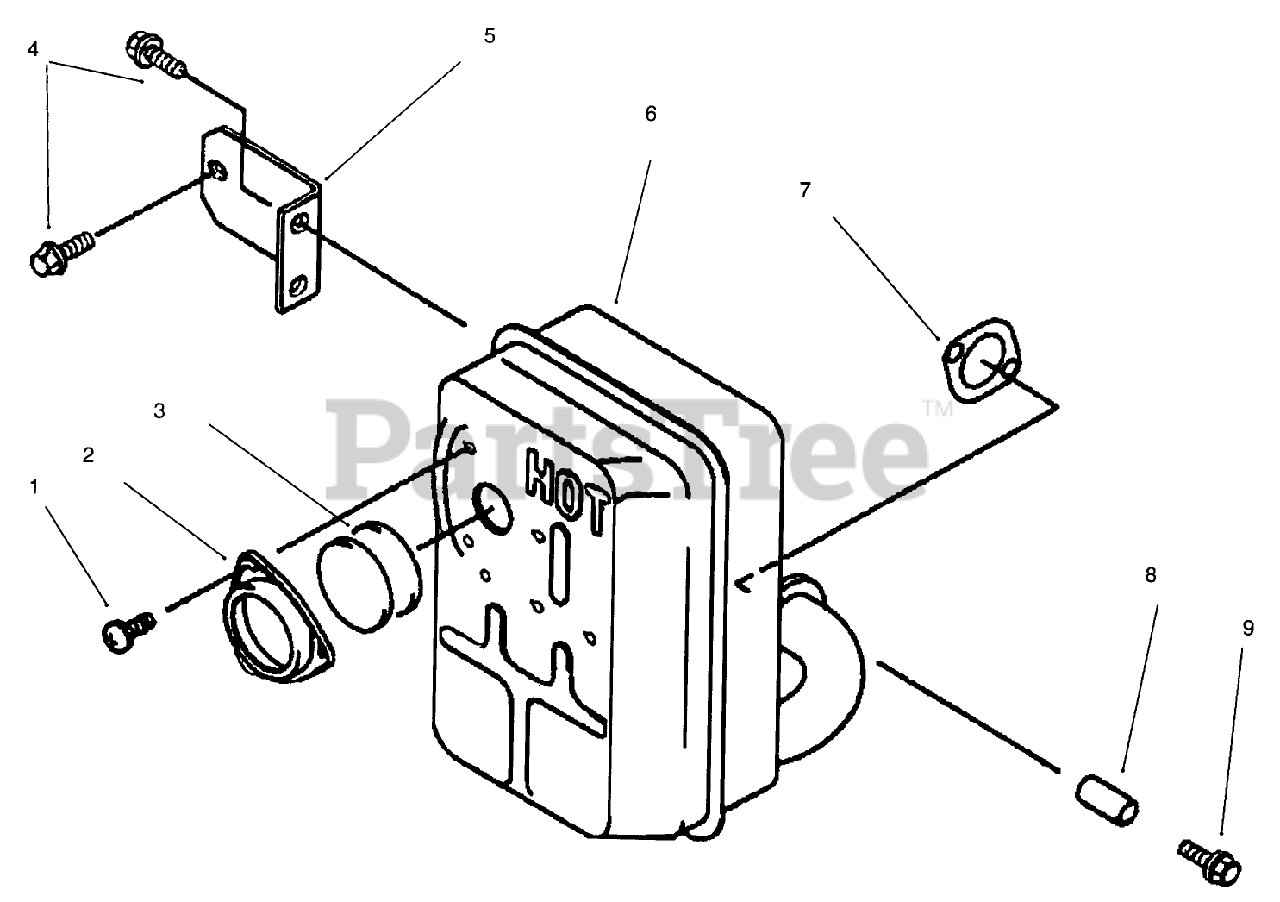

MUFFLER Parts Diagram

  • Title

1

Kawasaki 92009-2166

Screw

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$0.99

$

Usually ships in 2-5 days

0

2

Kawasaki 11012-2165-9Y

Cap
(Superseded to 11012-2251-9Y)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

3

Kawasaki 18077-2052

Arrester-Spark

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

4

Toro 130G0812

Bolt-Flanged (8X12)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

5

Toro 11044-2069-9Y

Bracket

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

6

Kawasaki 49069-2190-9Y

Muffler Assembly (Incl. Ref. #1-3)
(Superseded to 49069-2096-9Y)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

7

Toro 11009-2527

Gasket-Muffler

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

8

Kawasaki 92027-2081

Collar

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$2.49

$

In Stock, only 2 left!

0

9

Kawasaki 130G0845

Bolt-Flanged (8X45)
(Superseded to 130BA0845)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$1.99

$

In Stock, Qty 13

0
